Product Number: 2305-20-30
Variations

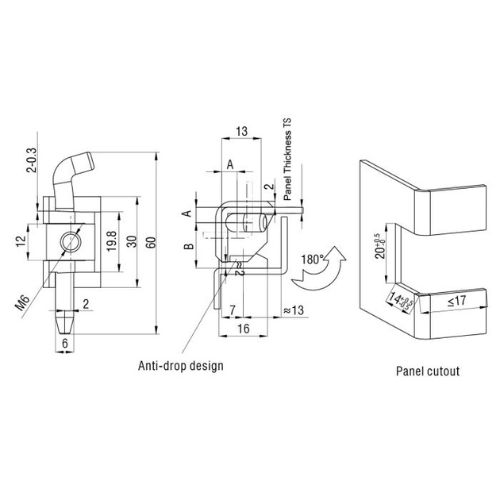

The 2305-20-30 is an external cabinet hinge finished in bright chrome, suitable for use on metal enclosures and electrical cabinets requiring a secure, load-bearing pivot point. The hinge is designed for panel thicknesses of 1.5 to 2mm and carries an axial load capacity of 358kg per hinge and a radial load capacity of 278kg per hinge, making it appropriate for robust industrial and workshop cabinet applications.
Constructed in die cast zinc with a stainless steel SS316 pin, the hinge combines corrosion-resistant hardware with a durable zinc die body. The mild steel zinc-plated elements and black textured powder-coated finish on select components complement the overall bright chrome exterior. The unhanded orientation means the hinge is suitable for left- or right-hand door mounting without modification.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Bright Chrome |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |

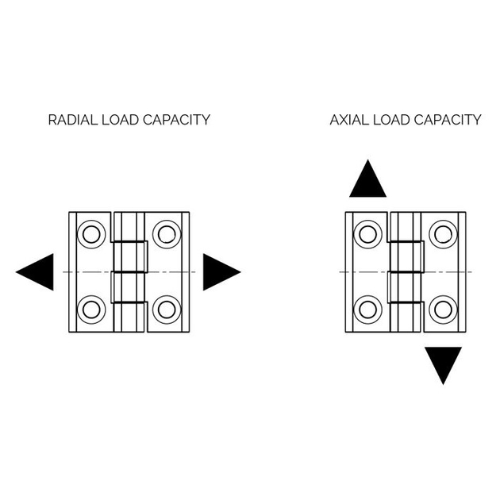

| Axial Load Capacity | 358 kg per hinge |
| Radial Load Capacity | 278 kg per hinge |
| Panel Thickness | 2 mm |
| Model | 2305 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
External Cabinet Hinge with M6 Stud, Bright Chrome Finish, Panel Thickness 2mm, Metrol - 2305-20-30
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
External Cabinet Hinge with M6 Stud, Black Powder Coated Finish, Panel Thickness 1.5mm, Metrol - 2305-15-20
£9.70
£9.51
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2305-20-20 | 2305-15-20 | 2404-02-L | 2404-02-R | 2118-200-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 2mm | 1.5mm | 3.6mm | 3.6mm | 38x40mm |
| Material | Zinc plated steel | Zinc plated steel | |||
| Finish | Zinc | Zinc | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | |
| Thread | M6 | M6 | |||
A. The 2305-20-30 is designed for panels with a thickness of 1.5 to 2mm.
A. The hinge has an axial load capacity of 358kg per hinge and a radial load capacity of 278kg per hinge.
A. The hinge is constructed from die cast zinc alloy with a stainless steel SS316 pin. Additional elements include mild steel zinc-plated components and a black textured powder-coated finish.
A. Yes — the 2305-20-30 has an unhanded orientation, meaning it can be mounted for either left- or right-hand door opening without modification.
A. The finish is bright chrome.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
