Product Number: 2305-20-20
The 2305 External Cabinet Hinge (SKU: 2305-20-20) is a black powder coated cabinet hinge designed for use on external panel assemblies requiring high load-bearing performance. Its black textured powder coated finish provides a uniform, durable appearance suited to metal enclosure and cabinet applications.
Constructed using zinc alloy die casting with a mild steel zinc plated body and a stainless steel 316 pin, this hinge combines corrosion-resistant materials with a robust structural composition. The unhanded orientation means it can be fitted without specifying a left or right configuration, simplifying installation and stock management.

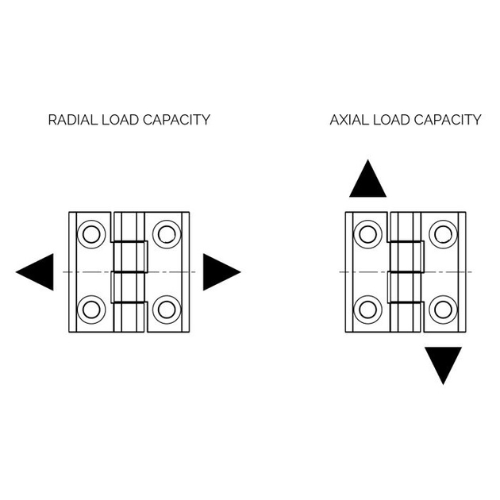

The 2305 hinge is rated to an axial load capacity of 358 kg per hinge and a radial load capacity of 278 kg per hinge, making it well suited to heavy-duty cabinet and enclosure doors. It is compatible with panel thicknesses of 1.5 to 2 mm.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Axial Load Capacity | 358 kg per hinge |
| Radial Load Capacity | 278 kg per hinge |
| Panel Thickness | 2 mm |
| Model | 2305 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

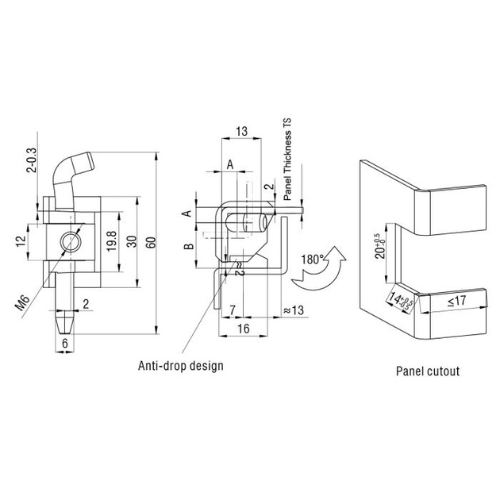

External Cabinet Hinge with M6 Stud, Black Powder Coated Finish, Panel Thickness 2mm, Metrol - 2305-20-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2305-20-30 | 2305-15-30 | 2404-02-L | 2404-02-R | 2118-200-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 2mm | 1.5mm | 3.6mm | 3.6mm | 38x40mm |
| Material | Zinc plated steel | Zinc plated steel | |||
| Finish | Chrome | Chrome | Zinc | Zinc | |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | |
| Thread | M6 | M6 | |||
A. The hinge body is constructed from die cast zinc alloy with a mild steel zinc plated composition, and the pin is stainless steel grade SS316. The finish is a black textured powder coating.
A. The 2305 hinge is rated at 358 kg axial load capacity per hinge and 278 kg radial load capacity per hinge.
A. The 2305 hinge is designed for panels with a thickness of 1.5 to 2 mm.
A. No. The 2305 hinge has an unhanded orientation, meaning it can be installed on either left-hand or right-hand configurations without modification.
A. The hinge is finished in black textured powder coating, providing a durable and uniform appearance suitable for metal cabinet and enclosure applications.
