Product Number: 05035

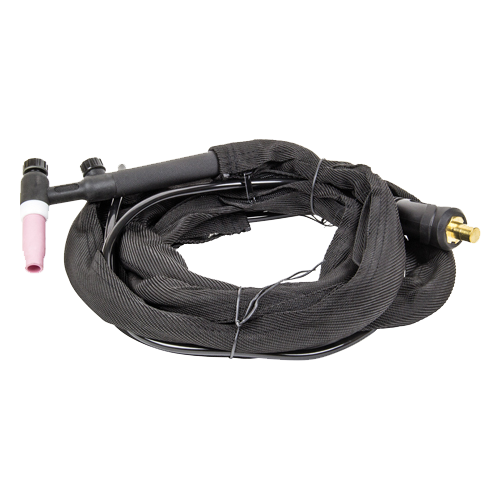

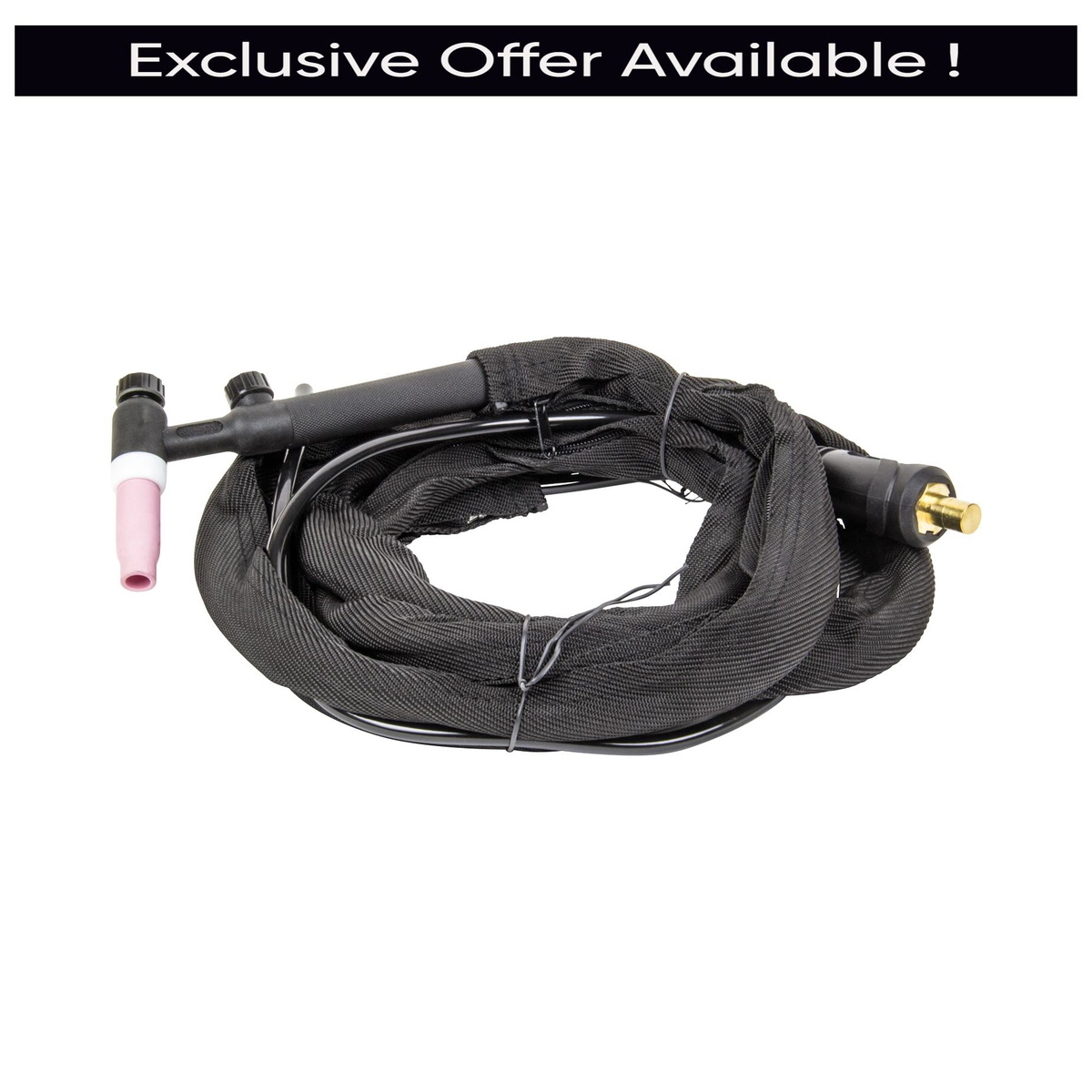

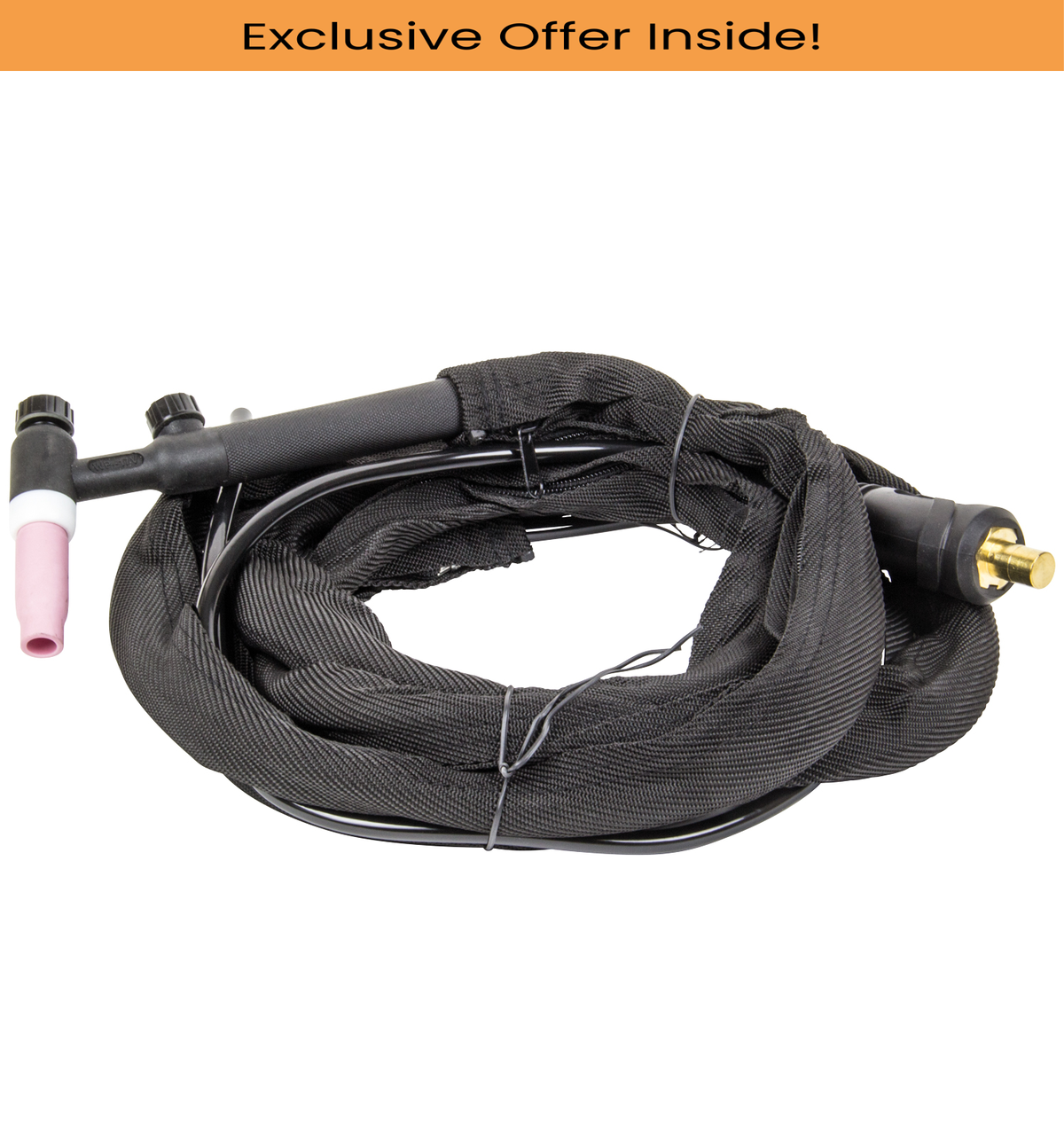

The SIP 05035 tig torch. SIP 17V LARGE DINSE TIG. The SIP 17V TIG Welding Torch utilises a large dinse connection, and is ideal for high-quality welding and long life durability in tandem with a range of premium SIP TIG welders and inverters, offering high performance in all applications. High-quality TIG welding torch with large dinse connections. Ideal for a range of premium SIP MIG welders and inverters. Compatible across the sip welding, sip tig torches welding range — check product specifications for exact model fit. Also known as replacement tig torch or air cooled tig torch in welding supplies catalogues.
Additional Information:
The SIP 17V TIG Welding Torch utilises a large dinse connection, and is ideal for high-quality welding and long life durability in tandem with a range of premium SIP TIG welders and inverters, offering high performance in all applications.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05035 |
|---|---|
| Torch Type | SIP 17V LARGE DINSE TIG |
| Torch Length | 4mtr |
| Duty Cycle | N/A |
| Suitable For | 05715 / 05730 / 05732 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 70011 MMA Inverter Welder with TIG-Lift Dti, 200A
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 05701 | 05709 | 34310 | 57096 | 70011 |
A. Compatible with: 05715 / 05730 / 05732. Compatible with the specified TIG welding machines only — confirm torch connector type matches your machine socket. Confirm the torch connector type and pin count match your machine socket.
A. The SIP 05035 is rated at 200A (air-cooled). Running above this level overheats the gas seal and collet assembly. For sustained high-amperage TIG work, consider a water-cooled torch.
A. The SIP 05035 is air-cooled. Air-cooled torches are lighter, simpler, and more portable. Water-cooled torches offer higher sustained current ratings and a slimmer torch body for better visibility at the weld joint.
A. The SIP 05035 uses SR17-series consumables — collets, collet bodies, ceramic cups, and back caps in the appropriate sizes for your tungsten diameter. The full range is in the TIG Welding Consumables section.
A. Keep the tungsten above the weld pool and away from filler rod. Allow 5–10 seconds of Argon post-flow after extinguishing the arc — tungsten oxidises above 200°C. Re-grind at the first sign of contamination (dark discolouration, arc wandering).
A. TIG welding requires pure Argon shielding gas — not CO2 or Argon/CO2 mix. Pure Argon provides the stable arc and clean weld pool needed for TIG. Set the flow rate to 6–12 L/min depending on material and cup size.
A. Ceramic cup size is chosen based on tungsten diameter, gas coverage needed, and access to the joint. Larger cups provide better gas coverage for critical alloys (titanium, stainless). Smaller cups improve visibility and access in tight joints.
A. Clean the collet and collet body regularly — contamination causes arc instability. Replace ceramic cups when cracked (even hairline cracks cause gas turbulence). Replace the back cap if gas tightness is compromised. Inspect the torch lead for damage.
A. Essential accessories include a welding helmet, leather gauntlets, an earth clamp, and consumables for your welding process — wire and gas for MIG, electrodes for ARC/MMA, tungsten and gas for TIG. A wire brush and chipping hammer are needed for post-weld cleanup. A welding cart keeps your machine mobile.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
