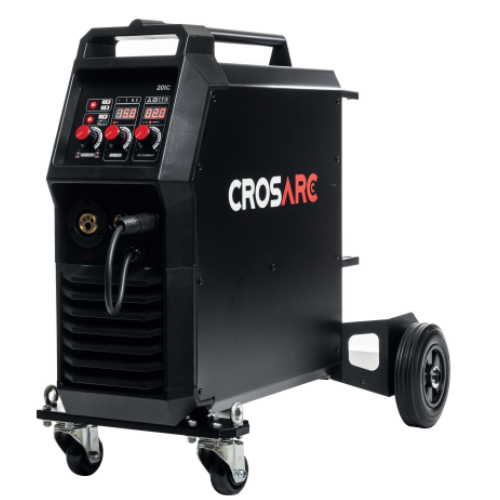

CrosArc - CAP0253 - Inverter Welder - MIG/MMA, Suitable for 0.6, 0.8 & 1.0mm Wire, Output current 200A

Name: CrosArc - CAP0253 - Inverter Welder - MIG/MMA, Suitable for 0.6, 0.8 & 1.0mm Wire, Output current 200A
Brand: CROSARC
SKU: CAP0253
Price: 656.95 GBP
Availability: InStock
Rating: 5 (5 reviews)

Product Number: CAP0253

£670.09 £656.95

BUY NOW

ADD TO CART

Click on the button below to find the right welding equipment

Welder Finder

Product Features:

Latest IGBT Multi Process Inverter Power Source
Digital Volt / Amp Display
Seamless Electronic Adjustment
4 Roll Wire Feed System
Suitable for 0.6, 0.8 & 1.0mm Wire
Will Accept 5 or 15 Kilogram Reels
VRD Safety Device
Trolley Mounted
Generator Friendly
Easy Set Up & Operation

Functions:

MIG/MAG
MMA
Burn Back Adjustment
Wire Inching
2T/4T
Gas Purge Function
Variable Inductance

Package Includes:

201C Inverter Power Source
M2-4 Mtr MIG Welding Torch
Earth Return Lead & Clamp
Gas Hose
3 Mtr MMA Lead
16A Plug

BUY NOW

ADD TO CART

Input Voltage	1P-230 (+ - 15%) 50/60Hz
Input Current	16 (A)
Current Range MIG	40-200 (A)
Current Range MMA	25-200 (A)
Voltage Adjustment Range (V)	15-28
Duty Cycle @ 40°C	200A @ 60%
Wire Speed (m/min)	2-16
Efficiency (%)	80
Power Factor @ 100%	0.73
Protection / Insulation Class	IP21/F
Dimensions (mm)	935 x 445 x 810
Weight (Kg)	53

BUY NOW

ADD TO CART
