Product Number: ATCFRL6
Variations

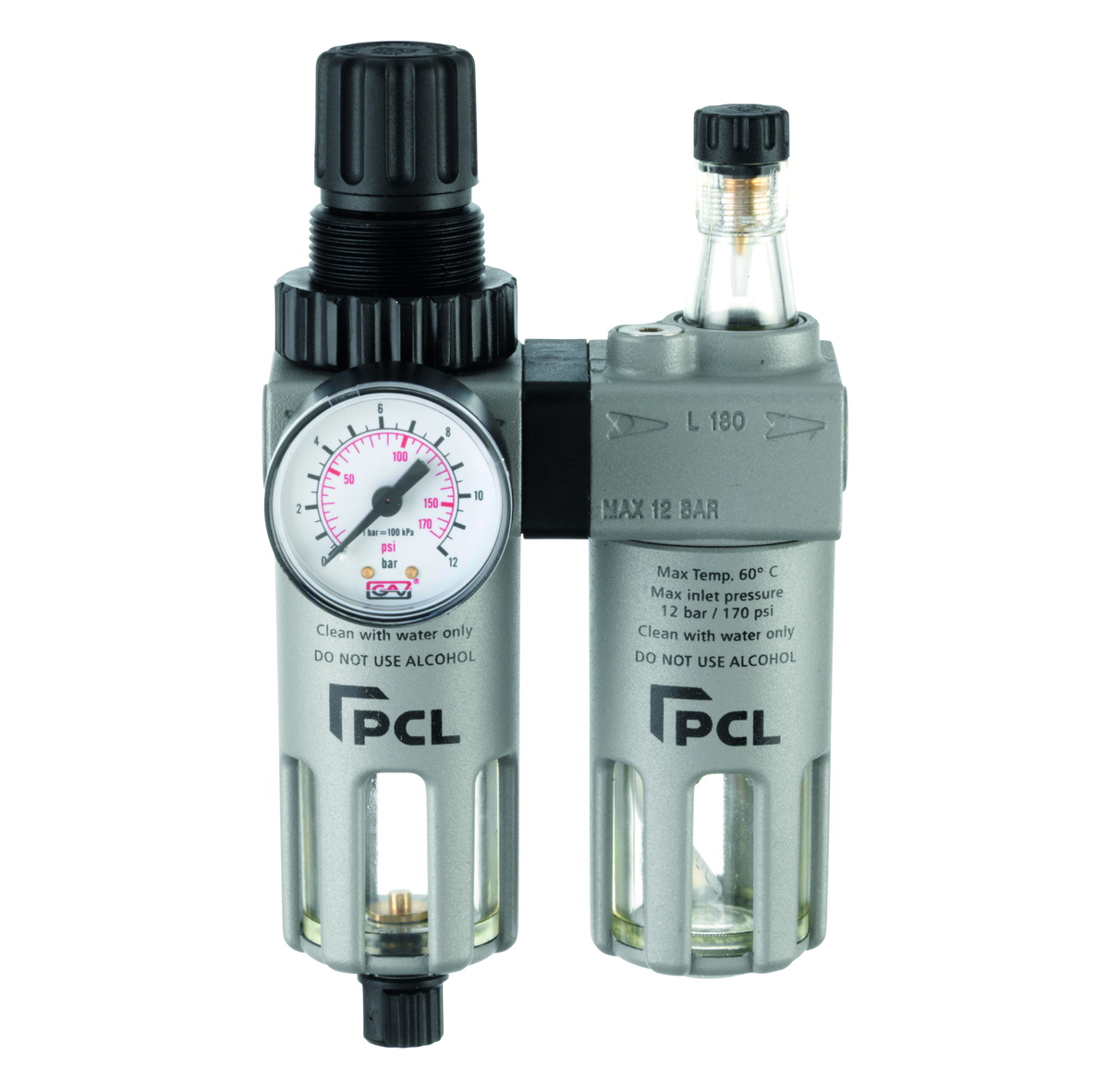

Contaminated or unregulated compressed air shortens tool life and reduces output quality. The PCL ATCFRL6 is a combined air treatment Filter/Regulator/Lubricator (FRL) unit fitted with 1/4" ports, offering an output pressure range of 0–145 psi (0–10 bar) and a maximum working pressure of 12 bar, with a rated flow of 1,800 l/min — designed to control output air pressure, eliminate moisture and contaminants from the air flow, and lubricate tools during use.
The unit filters the air supply to 10 microns, removing particulates and moisture before they reach downstream tools. The polycarbonate bowls allow the user to monitor the filter element's condition and the collected liquid level at a glance, while a surrounding protective metal guard provides a safety barrier against excessive pressure, temperature, or contact with aggressive chemicals.
As a combined FRL, the ATCFRL6 addresses three air treatment functions in a single in-line unit: filtration, regulation, and lubrication. The 1/4" port sizing makes it compatible with standard quarter-inch airline connections. PCL manufacture this unit in Sheffield and have been producing compressed air equipment in the UK since 1938, as part of the HORNGROUP.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 0.611 |
| BoxLength | 230mm |
| BoxWidth | 105mm |
| BoxHeight | 50.0mm |
| EAN | 5014875890524 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SPRFR180 | PCL SPRFR180 Filter for ATCFRL6, ATC6 & ATF6 (Part 25) | 1 Unit |
£17.30
£16.96
|
Add |
|
ATS6 | PCL ATS6 Replacement Bowl Kit (Includes Parts 29, 34, 35 & 36) for ATC6, ATCFRL6 & ATF6 | 1 Unit |
£35.02
£34.33
|
Add |
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ATC12 | ATC6 | ATR12 | ATR6 | ATL12 |
| Type | Filter/Regulator | Filter/Regulator | Regulator | Regulator | Lubricator |
| Pressure Range | 0-170 psi | 0-145 psi | 0-170 psi | 0-145 psi | |
A. The ATCFRL6 is the PCL Air Treatment Filter/Regulator/Lubricator 0-145 psi/0-10 bar, 1/4 Ports. The PCL ATCFRL6 is a combined air treatment Filter/Regulator/Lubricator (FRL) unit fitted with 1/4" ports, offering an output pressure range of 0–145 psi (0–10 bar) and a maximum working pressure of 12 bar, with a rated flow
A. compatible with standard quarter-inch airline connections.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. Yes — this product is part of a PCL range with sibling variants in alternative sizes, connections or configurations; see the product variants for options.
A. The PCL ATCFRL6 is a combined air treatment Filter/Regulator/Lubricator (FRL) unit fitted with 1/4" ports, offering an output pressure range of 0–145 psi (0–10 bar) and a maximum working pressure of 12 bar, with a rated flow of 1,800 l/min — designed to control output air pressure, eliminate moistur
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
