Product Number: ATCFRL12
Variations

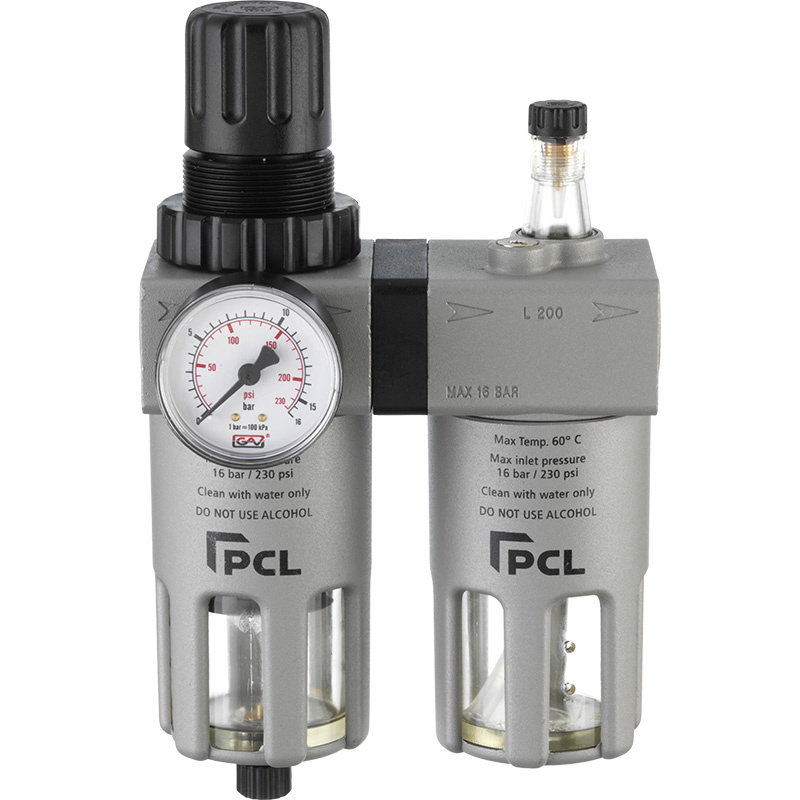

Moisture, contaminants and unregulated pressure in a compressed air line cause tool wear and inconsistent performance. The PCL ATCFRL12 is a combined Filter/Regulator/Lubricator (FRL) unit with 1/2" ports, rated for output pressures from 0 to 12 bar (0–170 psi) against a maximum working pressure of 16 bar, and capable of flow rates up to 5,000 litres per minute. It is designed to control output air pressure, eliminate moisture and contaminants from the air supply, and lubricate connected tools during use. The unit filters the air line to 10 microns, reducing particulate contamination before it reaches downstream tooling. Polycarbonate bowls allow the operator to monitor the condition of the filter element and the level of collected liquid without disassembly. A protective metal surround encloses each bowl as a safety measure against excessive pressures, temperatures, or aggressive chemicals. With a 1/2" port size and a flow capacity of 5,000 l/min, the ATCFRL12 is suited to higher-demand workshop installations where air quality and consistent pressure are critical to tool life and output consistency. The unit forms part of PCL's Air Treatment range, produced in Sheffield since 1938 and part of HORNGROUP.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| ShippingWeight(kg) | 1.458 |
| BoxLength | 230mm |
| BoxWidth | 145mm |
| BoxHeight | 70.0mm |
| EAN | 5014875890531 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATS12 | PCL ATS12 Replacement Bowl Kit (Includes Parts 29, 34, 35 & 36) for ATC12, ATCFRL12 & ATF12 | 1 Unit |
£48.80
£47.84
|
Add |
|
SPRFR200 | PCL SPRFR200 Filter for ATCFRL12, ATC12 & ATF12 (Part 25) | 1 Unit |
£22.02
£21.59
|
Add |
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ATC12 | ATC6 | ATR12 | ATR6 | ATL12 |
| Type | Filter/Regulator | Filter/Regulator | Regulator | Regulator | Lubricator |
| Pressure Range | 0-170 psi | 0-145 psi | 0-170 psi | 0-145 psi | |
A. The ATCFRL12 is the PCL Air Treatment Filter/Regulator/Lubricator 0-170 psi/0-12 bar, 1/2 Ports. The PCL ATCFRL12 is a combined Filter/Regulator/Lubricator (FRL) unit with 1/2" ports, rated for output pressures from 0 to 12 bar (0–170 psi) against a maximum working pressure of 16 bar, and capable of flow rates up to 5,
A. Yes — this product is part of a PCL range with sibling variants in alternative sizes, connections or configurations; see the product variants for options.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. The PCL ATCFRL12 is a combined Filter/Regulator/Lubricator (FRL) unit with 1/2" ports, rated for output pressures from 0 to 12 bar (0–170 psi) against a maximum working pressure of 16 bar, and capable of flow rates up to 5,000 litres per minute.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
