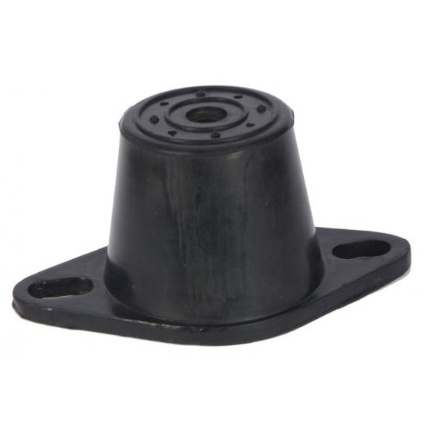

The TMS is a Type A turret mounting with an M8 thread, belonging to the instrument and general mounting family, a range of lightweight, low-load rubber-to-metal bonded mounts engineered to provide vibration isolation for sensitive instruments, electronics and light equipment. With an outer diameter of 80 mm and a height of 45 mm, the TMS is built for applications where protecting delicate components from vibration-induced damage is the primary concern. Rubber-to-metal bonded construction gives the TMS its characteristic durability and load-sharing capability, whilst the turret geometry allows loading in shear, compression or a combination of both. This versatility makes it well suited to installations where the direction of vibration energy cannot always be precisely controlled. The mount contributes to improved machinery lifespan, protects surrounding structures and enhances operator comfort across a broad range of operating environments. With a B dimension range of 54–60 mm, a C dimension of 45 mm, an F dimension of 32 mm and an H of 41 mm, the TMS carries a defined dimensional envelope that suits panel-mounted or frame-mounted instrument installations. Industries served by this mounting family include agriculture, marine, power generation, railway and mass transit, automotive, construction and off-highway, and military and defence applications, wherever lightweight equipment must be shielded from structural vibration. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for demanding environments. The TMS sits as the sole size within its turret mount configuration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 80 |
| Width / dimension B (mm) | 54-60 |
| Height / dimension C (mm) | 45 |
| Outer diameter D (mm) | 9 |
| Dimension E (mm) | 12 |
| Fixing hole / dimension F (mm) | 32 |
| Fixing hole spacing G (mm) | 5 |
| Overall height H (mm) | 41 |
| Dimension I (mm) | M8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The TMS is designed for vibration isolation of sensitive instruments, electronics and light equipment. It is suitable for use in agriculture, marine, power generation, railway and mass transit, automotive, construction and off-highway, and military and defence applications.
A. The TMS has an outer diameter (A) of 80 mm, a B dimension of 54–60 mm, a C dimension of 45 mm, a D dimension of 9 mm, an E dimension of 12 mm, an F dimension of 32 mm, a G dimension of 5 mm, an H dimension of 41 mm, and an M8 thread (I).
A. The TMS uses an M8 thread (dimension I).
A. The TMS turret mount may be loaded in shear, compression or a combination of both, giving flexibility across a range of mounting orientations and vibration directions.
A. The TMS uses rubber-to-metal bonded construction, which provides a durable and secure bond between the rubber isolator element and the metal hardware.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
