Product Number: TM229-60-60

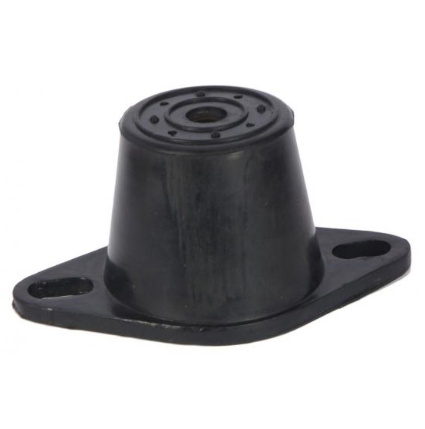

Balancing isolation performance with load-bearing capability, the TM229-60-60 is an M8 Type A turret mount rated to 60 Shore A, a medium hardness that sits at the practical midpoint between deflection-led isolation and firm structural support. With a maximum load rating of 15 kg and a maximum deflection of 2.0 mm, this mount is well suited to the broad middle ground of light machinery mounting, where neither excessive movement nor rigid restraint is appropriate. Its rubber-to-metal bonded construction ensures a durable, consistent interface between equipment and substrate. The medium 60 Shore A rubber compound is the general-purpose choice within the turret mount range. Where softer grades prioritise deflection and isolation for the most vibration-sensitive loads, this grade provides measured compliance alongside meaningful load capacity, making it appropriate for instruments, electronics, and light equipment across a range of environments. Mounts of this type may be loaded in shear, compression, or a combination of both, giving installation engineers useful flexibility in orientation. Dimensionally, the TM229-60-60 measures 62 mm (A) × 49.2 mm (B) with a body depth of 38 mm (C). Stud geometry is defined by D 4.8 mm, E 4.8 mm, F 29.5 mm, G 5.5 mm, and H 35.3 mm, with an M8 thread (I). Applications span construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence environments. Protecting surrounding structures, improving operator comfort, and extending machinery lifespan are the core functional outcomes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The TM229-60-60 is rated to a maximum load of 15 kg and a maximum deflection of 2.0 mm. These figures reflect its 60 Shore A medium rubber grade, which offers a balanced combination of load support and controlled movement.
A. The TM229-60-60 Type A turret mount measures 62 mm (A) × 49.2 mm (B) with a body depth of 38 mm (C). Further stud dimensions are: D 4.8 mm, E 4.8 mm, F 29.5 mm, G 5.5 mm, H 35.3 mm, and the thread is M8 (I).
A. Shore A hardness indicates the firmness of the rubber compound. At 60 Shore A, this mount occupies the middle ground of the range — softer grades provide greater deflection and better isolation under lower loads, while harder grades carry higher loads with less movement. The 60 Shore A grade is the general-purpose choice, balancing vibration isolation with load capacity.
A. This mount may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility in how the mount is oriented relative to the applied load.
A. This mount is suited to instruments, electronics, and light equipment requiring vibration isolation. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, in addition to the standard specification.
A. Related variants include TM229-40, TM229-50, TMC6535-45, TMC6535-55, TMC6535-65, TML, TML10185-45, and TML10320-55, covering a range of thread sizes, load ratings, and hardness grades.
