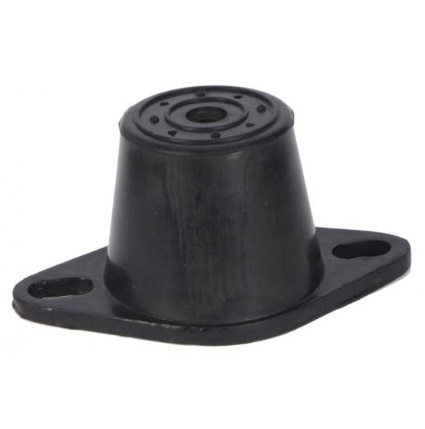

The TML Turret Mount is a rubber-to-metal bonded Type A mounting designed to carry load across a broad operational band, making it well suited to instruments, electronics, and light equipment where consistent vibration isolation is required. With an overall height dimension A of 150 mm, a thread size of M12, and a base width F of 70 mm, the TML occupies the upper end of the lightweight turret mount range and delivers dependable attenuation for installations where dimensional envelope and load capacity both matter. Constructed using rubber-to-metal bonded technology, the mount resists the relative movement between machine and supporting structure that causes wear and fatigue over time. The geometry accommodates loading in shear, compression, or a combination of both, giving engineers flexibility when orienting the mount within a chassis or enclosure. Key dimensional references are: A 150 mm, B 105–126 mm, C 86 mm, D 11 mm, E 22.5 mm, F 70 mm, G 6 mm, and H 82 mm, with M12 thread (I). The TML is appropriate across a wide spread of industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. By absorbing vibration at source it improves machinery lifespan, protects surrounding structures, and contributes to improved operator comfort. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for demanding environments, as are additional and custom sizes. This mount is offered as a single size within its series.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 150 |
| Width / dimension B (mm) | 105-126 |
| Height / dimension C (mm) | 86 |
| Outer diameter D (mm) | 11 |
| Dimension E (mm) | 22.5 |
| Fixing hole / dimension F (mm) | 70 |
| Fixing hole spacing G (mm) | 6 |
| Overall height H (mm) | 82 |
| Dimension I (mm) | M12 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Rubber Mount - Square Flanged Mount Range, Thread Size M12, Max Load 540 Kg - FM400-60
£57.44
£56.31
2% OFF
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

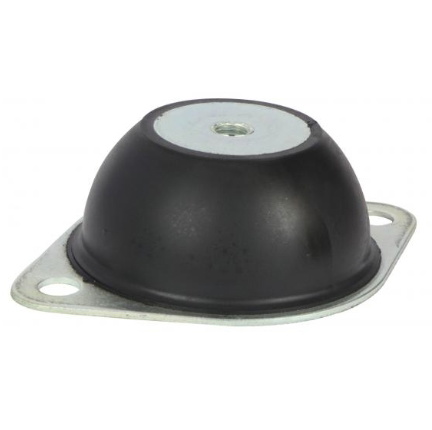

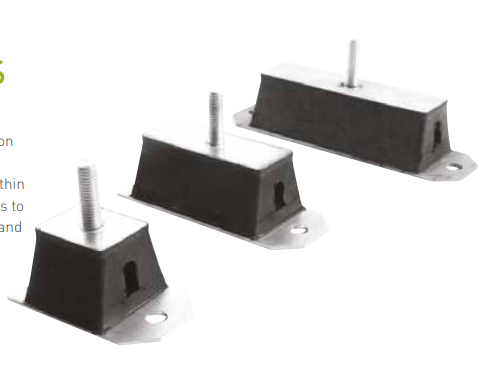

| PRODUCT NUMBER | SF150 | SF100 | HYDVC1.550 | HYDVC1.500 | FM400-75 | FM400-60 |
| Thread Size | M12 | M12 | M12 | M12 | M12 | M12 |
| Mount Type | SF Mountings | SF Mountings | Hydro Mountings | Hydro Mountings | Flanged Mountings | Flanged Mountings |
| Size Band | 126mm+ | 126mm+ | 126mm+ | 126mm+ | 126mm+ | 126mm+ |
| Hardness Shore | 75 | 60 | ||||
A. The TML is a Type A mount with the following dimensions: A 150 mm, B 105–126 mm, C 86 mm, D 11 mm, E 22.5 mm, F 70 mm, G 6 mm, H 82 mm, and an M12 thread (I).
A. The TML uses an M12 thread, referenced as dimension I in the product specification.
A. The TML is designed for instruments, electronics, and light equipment requiring vibration isolation. It is suitable for use in construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. The TML can be loaded in shear, compression, or a combination of both, providing flexibility for different installation orientations.
A. Rubber-to-metal bonded construction bonds the elastomer directly to the metal components, enabling the mount to absorb vibration and reduce relative movement between machine and structure. This improves machinery lifespan, protects surrounding structures, and improves operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Yes — related variants include TM229-40, TM229-50, TM229-60, TMC6535-45, TMC6535-55, TMC6535-65, TML10185-45, and TML10320-55, covering a range of sizes and load configurations.
