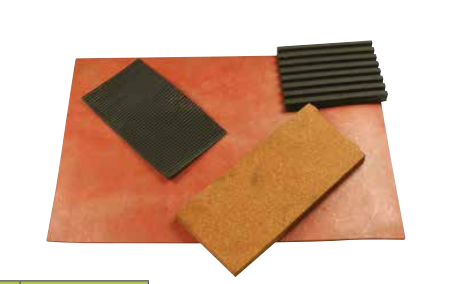

The M100100 is a 100 x 100 x 8 mm rubber anti-vibration mat rated to a maximum load of 200 kg per mat, engineered to absorb vibration and reduce shock transmission between machinery and surrounding structures. At this load capacity, the mat suits many static and dynamic applications where structural protection and operator comfort are equally important. Constructed using rubber-to-metal bonded principles common to the anti-vibration range, the mat delivers measurable benefits across its working life: improved machinery longevity, protection of adjacent structures from vibration fatigue, and a reduction in transmitted vibration reaching operators and support frames. Softer rubber grades within the broader family offer greater deflection and isolation at lower loads, whilst harder grades carry higher loads with less movement; Type A sits within this graded system to meet mid-range installation requirements. The M100100 is suited to demanding industrial environments across construction and off-highway plant, agricultural machinery, power generation equipment, marine installations, railway and mass transit applications, automotive assemblies, and military and defence equipment. Its 100 x 100 mm footprint makes it straightforward to position under machinery bases, equipment feet, and structural mounting points where a compact but capable isolator is required. This product is part of a broader rubber sheet and anti-vibration mat range. Related variants include FFCR151210, FFCR301210, FICR151410, FICR301410, FICR451410, FICR601410, M300300, and M400400, which offer alternative sizes and configurations to suit differing load and footprint requirements. Custom sizes, oil-resistant rubbers, high-temperature rubber compounds, and stainless steel metal components are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Width W (mm) | 100 |
| Length L (mm) | 100 |
| Overall height H (mm) | 8 |
| Max load per mat (kg) | 200 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The M100100 measures 100 mm wide by 100 mm long by 8 mm thick and is rated to a maximum load of 200 kg per mat.
A. The mat uses rubber-to-metal bonded construction, consistent with the anti-vibration range, providing reliable vibration damping and structural durability under sustained load.
A. The mat is suited to construction and off-highway plant, agricultural machinery, power generation equipment, marine installations, railway and mass transit systems, automotive assemblies, and military and defence applications.
A. Installing the M100100 improves machinery lifespan, protects surrounding structures from vibration fatigue, and improves operator comfort by reducing transmitted vibration.
A. Yes — stainless steel metal components, oil-resistant rubbers, high-temperature rubber compounds, and additional or custom sizes are available on request.
A. Yes — related variants include FFCR151210, FFCR301210, FICR151410, FICR301410, FICR451410, FICR601410, M300300, and M400400, offering alternative sizes and configurations for differing load and footprint requirements.
