Product Number: TMS08035-45

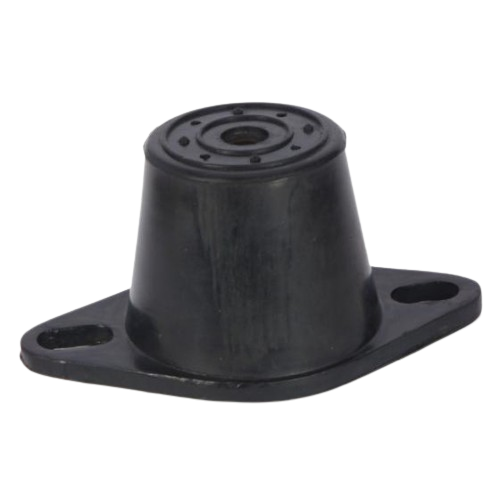

Prioritising maximum vibration isolation over restraint, the TMS08035-45-45 is an 80 mm Type A turret mount rated to a 35 kg maximum load with a 45 Shore A soft rubber element, the lowest hardness grade in this geometry and the one that delivers the greatest deflection under load, up to 8.0 mm. Where the goal is protecting sensitive or lightly loaded equipment from low-frequency vibration rather than controlling significant movement, this is the grade to specify. The rubber-to-metal bonded construction uses an M8 thread (dimension I) and combines the soft elastomer with a compact turret profile. Softer grades give greater deflection and better isolation at lower load, as confirmed by the family specification, making this mount the natural choice wherever isolation performance is the primary requirement and equipment loads are on the lighter side. Stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request for more demanding environments. With an overall diameter of 80 mm (A), a height of 41 mm (H), and a centre-to-mounting dimension of 45 mm (C), the TMS08035-45-45 is suited to compact or space-constrained installations. Mounts of this type may be loaded in shear, compression, or a combination of both. Industries served by this family include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications, wherever instruments, electronics, or light equipment need isolation from structure-borne vibration.
A simple and effective mounting solution, primarily used for supporting heating, ventilation and air conditioning systems. The rubber compound fully encapsulates the metal of the Turret mountings which provides excellent environmental resistance.
With a large range of maximum loads (between 35kg to 500kg) and relatively high static deflections, the Turret mountings are capable of delivering a high degree of vibration isolation even at low disturbing frequencies.
Typically used for:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

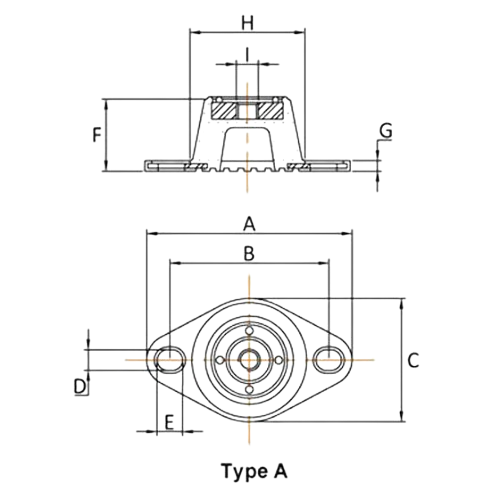

| Overall Width (A) | 80mm |
|---|---|
| Fixing hole Distance (B) | 54-60mm |
| Overall Height (C) | 45mm |
| Fixing Hole Width (D) | 9mm |
| Fixing Hole Length (E) | 12mm |
| Fixing Hole Width (D) | 9mm |
| Mounting Heigth (F) | 32mm |
| Base Thickness (G) | 5mm |
| Top Width (H) | 41mm |
| Thread Size (I) | M8 |
| Max Load (kg) | 35 |
| Deflection (mm) | 8 |
| Colour code | Yellow |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. This mount is rated to a maximum load of 35 kg and offers a maximum deflection of 8.0 mm. The 45 Shore A soft grade provides the greatest deflection within this geometry, giving superior vibration isolation at lighter loads.
A. A 45 Shore A rating places this mount in the soft range. Softer grades give greater deflection and better isolation at lower load, making this grade the correct choice where maximum vibration isolation is the priority rather than high load capacity or movement restraint.
A. The mount has an overall diameter (A) of 80 mm, a centre height (H) of 41 mm, a C dimension of 45 mm, a D dimension of 9 mm, an E dimension of 12 mm, an F dimension of 32 mm, a G dimension of 5 mm, and a B dimension of 54–60 mm. The thread (I) is M8.
A. This mount is designed for instruments, electronics, and light equipment where protecting sensitive components from structure-borne vibration is the primary concern. The family serves industries including agriculture, marine, power generation, railway and mass transit, construction and off-highway, automotive, and military and defence.
A. Turret mounts of this type may be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
