Product Number: TML10500-65

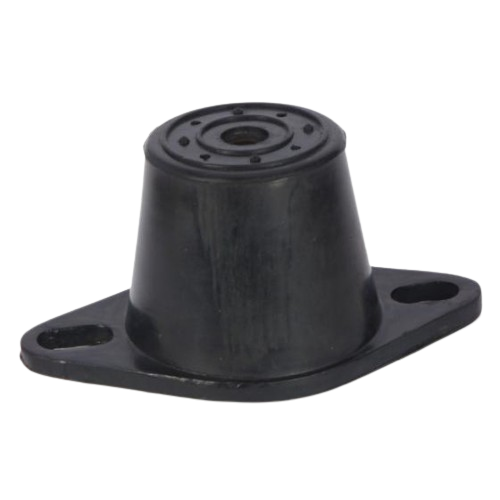

Built to hold firm under demanding conditions, TML10500-65-65 is an M12 turret mounting rated to a maximum load of 500 kg at 65 Shore A hardness, the stiffest grade in this geometry and the one selected when movement must be minimised and loads are at their heaviest. Maximum deflection is 10.0 mm, reflecting the firm rubber compound's resistance to displacement under shock, impact, or sustained high static loading. Rubber-to-metal bonded construction is employed throughout, combining the load-bearing integrity of the metal element with the damping properties of the vulcanised rubber. At 65 Shore A, the rubber resists compression and shear with substantially less give than softer grades, making this mount the correct choice where component restraint and positional stability take precedence over maximum vibration isolation amplitude. The mount can be loaded in shear, compression, or a combination of both. The dimensional envelope is: A 150 mm, B 105–126 mm, C 86 mm, D 11 mm, E 22.5 mm, F 70 mm, G 6 mm, H 82 mm, thread I M12. Industries regularly served by this turret mounting family include construction and off-highway plant, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. By absorbing shock energy at the mounting point, it helps extend machinery service life, protects surrounding structures, and reduces transmitted vibration to the operator position. This mount is available in 45 Shore A (TM229-40, TM229-50, TM229-60, TML10185-45) and alternative configurations including TMC6535-45, TMC6535-55, and TMC6535-65.
A simple and effective mounting solution, primarily used for supporting heating, ventilation and air conditioning systems. The rubber compound fully encapsulates the metal of the Turret mountings which provides excellent environmental resistance.
With a large range of maximum loads (between 35kg to 500kg) and relatively high static deflections, the Turret mountings are capable of delivering a high degree of vibration isolation even at low disturbing frequencies.
Typically used for:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

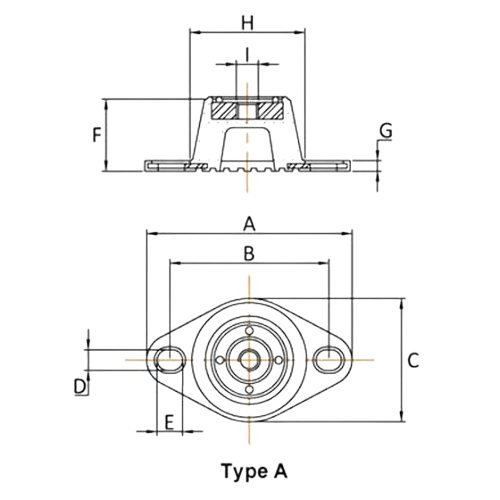

| Overall Width (A) | 150mm |
|---|---|
| Fixing hole Distance (B) | 105-126mm |
| Overall Height (C) | 86mm |
| Fixing Hole Width (D) | 11mm |
| Fixing Hole Length (E) | 22.5mm |
| Fixing Hole Width (D) | 11mm |
| Mounting Heigth (F) | 70mm |
| Base Thickness (G) | 6mm |
| Top Width (H) | 82mm |
| Thread Size (I) | M12 |
| Max Load (kg) | 500 |
| Deflection (mm) | 10 |
| Colour Code | Red |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. This turret mount is rated to a maximum load of 500 kg with a maximum deflection of 10.0 mm. The 65 Shore A hardness grade delivers the firmest response in the range, minimising movement under heavy static or dynamic loading.
A. The mount uses an M12 thread (dimension I). Other key dimensions are: A 150 mm, B 105–126 mm, C 86 mm, D 11 mm, E 22.5 mm, F 70 mm, G 6 mm, and H 82 mm.
A. The mount can be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation to suit the application.
A. Harder grades carry higher loads with less movement. At 65 Shore A, this mount is suited to heavier loads, shock and impact duty, and applications where the mounted item must be held firmly with minimal deflection. Softer grades give greater deflection and better isolation at lower loads.
A. The turret mounting family is used across construction and off-highway plant, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. It improves machinery lifespan, protects surrounding structures, and reduces vibration transmitted to the operator.
A. Yes — stainless steel metal components, oil-resistant rubber compounds, high-temperature rubber compounds, and additional or custom sizes are available on request.
A. Related mounts include TM229-40, TM229-50, TM229-60, TML10185-45, and the TMC6535 series in 45, 55, and 65 Shore A (TMC6535-45, TMC6535-55, TMC6535-65). Check each listing for load and deflection ratings appropriate to your application.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
