Product Number: TML10320-55

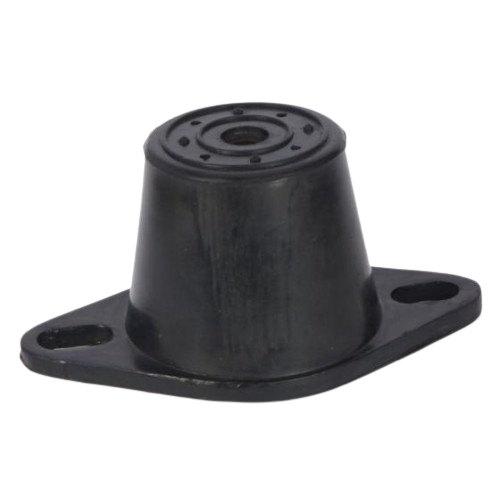

Engineered for the broad middle ground of machinery mounting, the TML10320-55-55 is a large-format turret mount rated to a maximum load of 320 kg with a maximum deflection of 10.0 mm, figures that place it firmly in the heavy end of the instrument and general mounting range. The M12 stud thread and 150 mm body diameter (dimension A) are designed to carry substantial static and dynamic loads while maintaining a useful degree of vibration isolation, making this grade the practical choice where neither full compliance nor rigid restraint is acceptable on its own. Constructed with rubber-to-metal bonding throughout, this Type A turret mount uses a 55 Shore A rubber compound to deliver a balanced combination of load-bearing capacity and isolation performance. At this hardness the mount absorbs operational vibration effectively across a wide frequency range whilst resisting the deformation under sustained loading that softer grades would experience. Key dimensions include a body height (C) of 86 mm, a stud length (E) of 22.5 mm, a flange diameter (F) of 70 mm, and a base hole diameter (G) of 6 mm, with an overall height to top (H) of 82 mm and a variable base spread (B) of 105–126 mm. The TML10320-55-55 is suited to vibration isolation and machinery protection duties in demanding sectors including construction and off-highway, power generation, agriculture, marine, railway and mass transit, automotive, and military and defence applications.
A simple and effective mounting solution, primarily used for supporting heating, ventilation and air conditioning systems. The rubber compound fully encapsulates the metal of the Turret mountings which provides excellent environmental resistance.
With a large range of maximum loads (between 35kg to 500kg) and relatively high static deflections, the Turret mountings are capable of delivering a high degree of vibration isolation even at low disturbing frequencies.
Typically used for:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

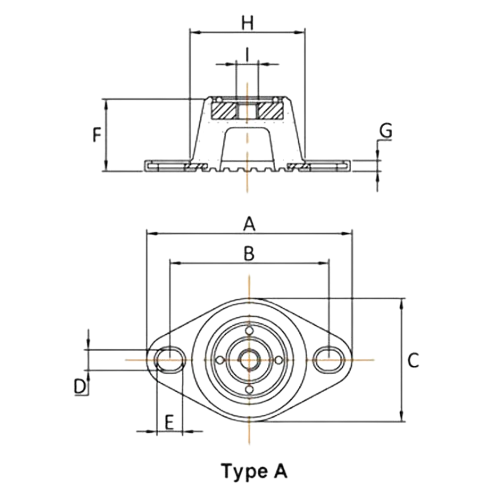

| Overall Width (A) | 150mm |
|---|---|
| Fixing hole Distance (B) | 105-126mm |
| Overall Height (C) | 86mm |
| Fixing Hole Width (D) | 11mm |
| Fixing Hole Length (E) | 22.5mm |
| Fixing Hole Width (D) | 11mm |
| Mounting Heigth (F) | 70mm |
| Base Thickness (G) | 6mm |
| Top Width (H) | 82mm |
| Thread Size (I) | M12 |
| Max Load (kg) | 320 |
| Deflection (mm) | 10 |
| Colour Code | Blue |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. This turret mount is rated to a maximum load of 320 kg and a maximum deflection of 10.0 mm, making it suitable for heavy-duty machinery mounting where both load capacity and controlled movement are required.
A. The mount uses an M12 stud thread (dimension I). Principal dimensions are: A (body diameter) 150 mm, B (base spread) 105–126 mm, C 86 mm, D 11 mm, E (stud length) 22.5 mm, F (flange diameter) 70 mm, G 6 mm, and H 82 mm.
A. At 55 Shore A this mount sits in the medium hardness band, balancing vibration isolation against load support. Softer grades offer greater deflection and better isolation under lighter loads; harder grades carry higher loads with less movement. The 55 Shore A grade is the general-purpose choice where neither maximum compliance nor maximum rigidity is the priority.
A. The TML10320-55-55 is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. It can be loaded in shear, compression, or a combination of both.
A. It uses rubber-to-metal bonded construction throughout, combining a 55 Shore A rubber element with metal components to deliver durable, consistent performance under sustained load and vibration.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. Contact PartsForMachines to discuss your requirements.
