Product Number: TMM10350-65

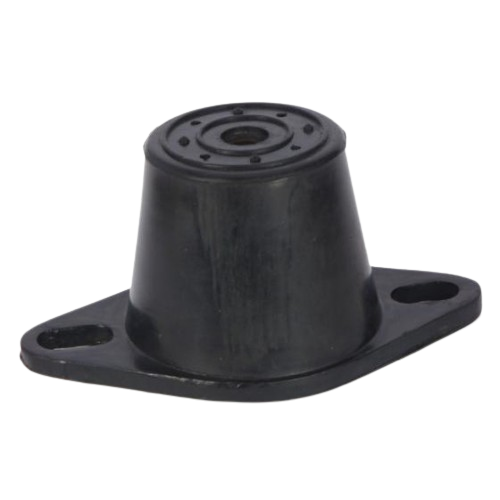

Rated to a maximum load of 350 kg with a maximum deflection of just 10.0 mm, the 65 Shore A turret mount TMM10350-65-65 is the firm-grade variant in this M10 turret mounting range, built for applications where equipment must be held with minimum movement under heavy or shock loading. The rubber-to-metal bonded construction delivers controlled compliance without excessive travel, making this the appropriate choice where load-bearing rigidity takes precedence over maximum vibration attenuation. At 65 Shore A, the rubber element resists deformation under sustained heavy loads and absorbs impact and shock inputs without allowing the mounted assembly to shift significantly from its set position. This characteristic suits plant and machinery installations where structural integrity and positional stability are the priority. Mounts of this type may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility in mounting orientation. By limiting transmitted vibration and shock, the mount contributes to extended machinery lifespan, protection of surrounding structures, and improved operator comfort. The turret body measures 95 mm across dimension A, with a B range of 67–76 mm, C of 60 mm, and an H dimension of 56 mm. Internal thread is M10 (dimension I). Additional dimensions: D 9 mm, E 14 mm, F 45 mm, G 5 mm.
A simple and effective mounting solution, primarily used for supporting heating, ventilation and air conditioning systems. The rubber compound fully encapsulates the metal of the Turret mountings which provides excellent environmental resistance.
With a large range of maximum loads (between 35kg to 500kg) and relatively high static deflections, the Turret mountings are capable of delivering a high degree of vibration isolation even at low disturbing frequencies.
Typically used for:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

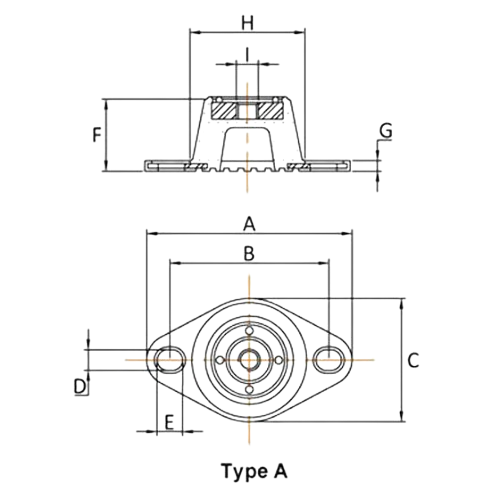

| Overall Width (A) | 95mm |
|---|---|
| Fixing hole Distance (B) | 67-76mm |
| Overall Height (C) | 60mm |
| Fixing Hole Width (D) | 9mm |
| Fixing Hole Length (E) | 14mm |
| Fixing Hole Width (D) | 9mm |
| Mounting Heigth (F) | 45mm |
| Base Thickness (G) | 5mm |
| Top Width (H) | 56mm |
| Thread Size (I) | M10 |
| Max Load (kg) | 350 |
| Deflection (mm) | 10 |
| Colour Code | Red |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The TMM10350-65-65 is rated to a maximum load of 350 kg with a maximum deflection of 10.0 mm.
A. This mount is 65 Shore A, the firmest grade in the range. At 65 Shore A, the rubber carries higher loads with less movement, making it the correct choice where positional stability, resistance to shock, and restraint of heavier assemblies take priority over maximum vibration attenuation.
A. A = 95 mm, B = 67–76 mm, C = 60 mm, D = 9 mm, E = 14 mm, F = 45 mm, G = 5 mm, H = 56 mm, thread I = M10.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation and installation design.
A. The firm 65 Shore A grade is appropriate for heavy-load and shock-duty installations across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — softer grades for lighter-duty vibration isolation are available; see related SKUs TM229-40, TM229-50, TM229-60, TMC6535-45, TMC6535-55, TMC6535-65, TML, and TML10185-45. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request.
A. Rubber-to-metal bonded construction reduces transmitted vibration and shock, contributing to extended machinery lifespan, protection of surrounding structures, and improved operator comfort.
