Product Number: TMM10130-45

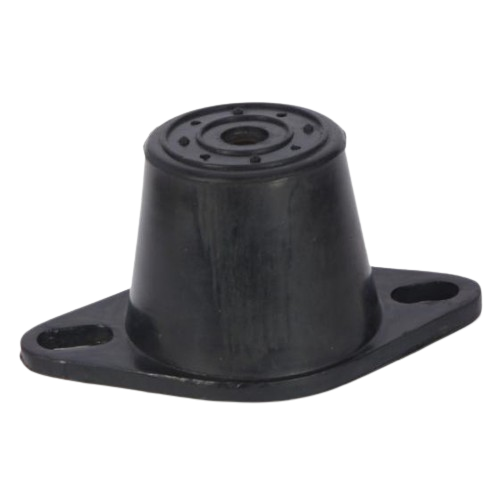

With a rated maximum load of 130 kg with a maximum deflection of 10.0 mm, the 45 Shore A turret mount TMM10130-45-45 is the soft-grade option in this M10 turret mounting range, chosen where vibration isolation takes priority over restraint. At 45 Shore A, the rubber compound yields the greatest deflection of the range under load, making it the appropriate selection for lighter or vibration-sensitive equipment and lower-frequency isolation applications where movement absorption matters most. Constructed using rubber-to-metal bonding, this Type A turret mount delivers the reliable mechanical connection that bonded anti-vibration mountings are known for. The geometry spans 95 mm across dimension A, with a mounting thread of M10 (dimension I), a compressed height range of 67–76 mm (B), and a base dimension of 60 mm (C). Additional dimensional references include D 9 mm, E 14 mm, F 45 mm, G 5 mm, and H 56 mm. By absorbing rather than transmitting vibration energy, the mount works to improve machinery lifespan, protect surrounding structures, and improve operator comfort. The instrument and general mounting family to which this product belongs is designed for lightweight, low-load applications: instruments, electronics, and light equipment requiring isolation from structure-borne vibration. Industries served by this family include agriculture, power generation, marine, construction and off-highway, railway and mass transit, automotive, and military and defence. Mounts in this family may be loaded in shear, compression, or a combination of both. This mount is part of a broader turret mounting range.
A simple and effective mounting solution, primarily used for supporting heating, ventilation and air conditioning systems. The rubber compound fully encapsulates the metal of the Turret mountings which provides excellent environmental resistance.
With a large range of maximum loads (between 35kg to 500kg) and relatively high static deflections, the Turret mountings are capable of delivering a high degree of vibration isolation even at low disturbing frequencies.
Typically used for:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall Width (A) | 95mm |
|---|---|
| Fixing hole Distance (B) | 67-76mm |
| Overall Height (C) | 60mm |
| Fixing Hole Width (D) | 9mm |
| Fixing Hole Length (E) | 14mm |
| Fixing Hole Width (D) | 9mm |
| Mounting Heigth (F) | 45mm |
| Base Thickness (G) | 5mm |
| Top Width (H) | 56mm |
| Thread Size (I) | M10 |
| Max Load (kg) | 130 |
| Deflection (mm) | 10 |
| Colour Code | Yellow |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The TMM10130-45-45 has a maximum load rating of 130 kg and a maximum deflection of 10.0 mm.
A. This mount is 45 Shore A, the soft grade. Softer rubber gives greater deflection and better vibration isolation at lower loads, making it the appropriate choice for lightweight, vibration-sensitive, or precision equipment where isolation performance is more important than stiffness or restraint.
A. Type A geometry. A = 95 mm, B (height under load) = 67–76 mm, C = 60 mm, D = 9 mm, E = 14 mm, F = 45 mm, G = 5 mm, H = 56 mm, thread I = M10.
A. The instrument and general mounting family is designed for instruments, electronics, and light equipment. Industries served include agriculture, power generation, marine, construction and off-highway, railway and mass transit, automotive, and military and defence.
A. Yes. Mounts in this family may be loaded in shear, compression, or a combination of both, depending on the installation and equipment requirements.
A. Yes. Stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional or custom sizes are all available on request.
A. Yes. Related variants include TM229-40, TM229-50, TM229-60, TMC6535-45, TMC6535-55, TMC6535-65, TML, and TML10185-45. See the individual listings for load, deflection, and dimensional specifications.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
