Product Number: RSM242-70

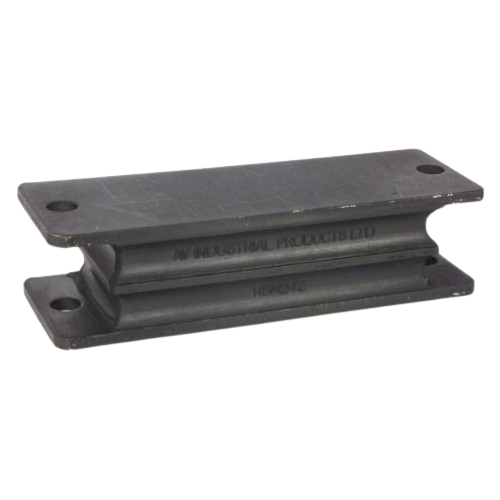

Built to carry demanding loads with minimum deflection, the RSM242-70-70 is a 70 Shore A rectangular sandwich mount rated to 1,000 kg with a deflection rate of 2.2 kg/mm, the firmest grade in the RSM242 range and the right choice wherever heavy loads, shock inputs, or rigid restraint are the primary concern. Dimensioned at 168 mm (A) × 57 mm (B) × 43 mm (C), with a 127 mm (D) and 146 mm (E) bolt-pitch arrangement, 11 mm (F) and 5 mm (G) metal details, this mount delivers the load-bearing performance that lighter Shore grades cannot provide. Rubber-to-metal bonded construction gives the RSM242-70-70 its structural integrity across shear, compression, and combined loading directions. The harder 70 Shore A compound is selected precisely because it limits movement under load: where a softer grade would deflect more and suit vibration isolation of sensitive or lightweight equipment, this firm grade holds equipment positively in place while still absorbing shock and impact energy that would otherwise transfer directly to surrounding structures or the operator. The mount serves industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. Within those sectors it is most applicable to heavy plant, powertrain mounts, engine restraint, and any assembly where load magnitude and impact rather than maximum isolation are the design drivers. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request for specialist applications.
A high-quality rubber compound moulded in between two metal flanges with a secondary metal interleaf bonded into the rubber section. The metal interleaf increases the maximum load capacity of the mountings, meaning they are capable of withstanding significantly higher loads.
Suitable for use with many different types of equipment, typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall Length (A) | 168mm |
|---|---|
| Rubber Body Length (B) | 57mm |
| Thread Dimension (C) | 43mm |
| Overall Dimension (D) | 127mm |
| Fixing hole center distance (E) | 146mm |
| Fixing Hole Dimension (F) | 11mm |
| G | 5mm |
| Max Load (kg) | 1000 |
| Deflection (mm) | 2.2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | RSM242-45 | RSM242-60 | RSM30242-70 | JC220.102 | RE15316 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 168mm | 168mm | 166mm | 181mm | 153mm |
| Deflection | 3 | 2.8 | 2.1 | ||
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
A. The RSM242-70-70 is rated to 1,000 kg with a deflection rate of 2.2 kg/mm, making it the highest load-capacity grade in the RSM242 series.
A. The principal dimensions are: A = 168 mm, B = 57 mm, C = 43 mm, D = 127 mm, E = 146 mm, F = 11 mm, and G = 5 mm.
A. The 70 Shore A compound carries higher loads with less deflection than softer grades. Where a 45 or 60 Shore A grade provides greater deflection and better isolation for lighter, more sensitive equipment, the 70 Shore A grade is the correct choice for heavy loads, shock and impact inputs, or where the mounted item must be held firmly with minimal movement.
A. Source data confirms use across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence sectors. The firm 70 Shore A grade is particularly suited to heavy plant, powertrain and engine restraint, and high-load assemblies where shock absorption and rigid positioning are the primary requirements.
A. The mount may be loaded in shear, compression, or a combination of both.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. The RSM242 geometry is also available in 45 Shore A (RSM242-45) and 60 Shore A (RSM242-60). Larger footprint variants across all three hardness grades are available as RSM284-45, RSM284-60, RSM284-70, RSM322-45, RSM322-60, and RSM322-70.
