Product Number: FCM3I-60
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

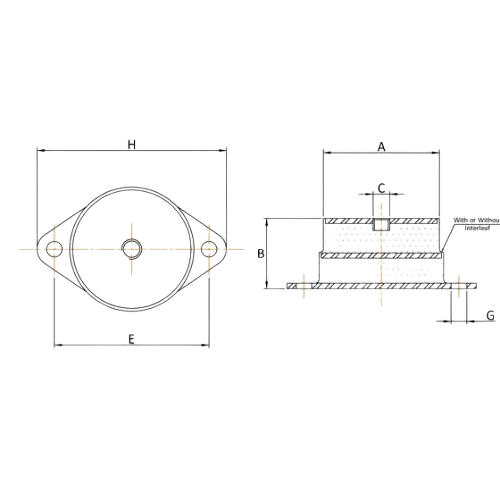

| Top Outer Dimension (A) | 81mm |
|---|---|
| Overall Heigt (B) | 50mm |
| Thread Size (C) | M12 |
| Base Dimension (E) | 112mm |
| Flange Thickness (G) | 12.5mm |
| Overall Length (H) | 140mm |
| Max Load (kg) | 750 |
| Deflection (mm) | 5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | 10254TRB32 | 12246TRB38 | 12525PRB17 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 102mm | 122mm | 125mm |
| Size Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 101-200mm |
A. The FCM3I is rated to a 60° load of 750 kg with a shore deflection of 5 mm.
A. Dimension A (flange diameter) is 81 mm, B (boss diameter) is 50 mm, C (thread) is M12, E (flange-to-flange height) is 112 mm, G (stud height) is 12.5 mm, H (overall height) is 140 mm, and S (thread count) is 3.
A. The FCM3I may be loaded in shear, compression, or a combination of both, allowing installation flexibility to suit the vibration characteristics and structural layout of the host machine.
A. The FCM3I is suited to power generation, marine, railway and mass transit, construction and off-highway, military and defence, and automotive applications — particularly where high-load vibration isolation is required to protect machinery and surrounding structures.

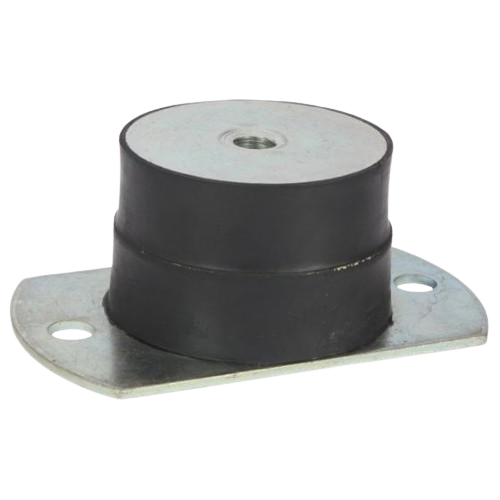

A. The FCM3I uses rubber-to-metal bonded construction, which provides consistent load transfer, resists delamination under cyclic loading, and contributes to extended machinery lifespan.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include FCM2, FCM2I, FCM3, FCM5, FCM5I, and FCM763812. Each SKU carries its own dimensional and load specification — refer to the individual listings to identify the grade best suited to your load and deflection requirements.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
