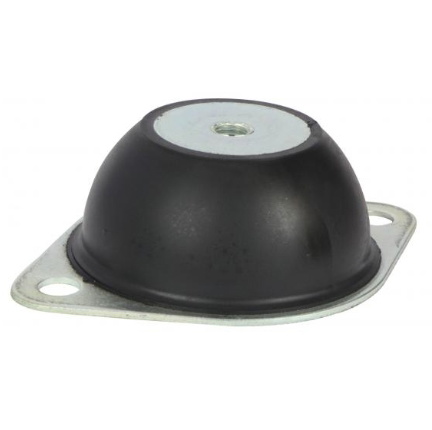

Product Number: FM4012
Variations
At 12mm height and with M6 thread fixing, FM4012 is the smallest mount in this flanged range, purpose-built to deliver vibration isolation for instruments, electronics and other sensitive light-load equipment where minimal footprint matters as much as performance. The rubber-to-metal bonded construction ensures a secure, durable bond between the elastomeric element and the metal flanges, maintaining consistent isolation characteristics across the operating life of the mount. Designed to serve the lower end of the load spectrum, this mount can be loaded in shear, compression or a combination of both, offering flexibility in how it is integrated into an assembly. The softer rubber element provides greater deflection and correspondingly improved isolation at lower loads, making it well suited to protecting sensitive instruments and electronic sub-assemblies from vibration that would otherwise compromise accuracy or longevity. The result is extended component lifespan, reduced transmission of vibration to surrounding structures, and improved operator comfort where the mount is used in cabined or manned equipment. The flanged geometry, with a flange diameter of 40mm, overall diameter D of 52mm, and washer dimensions of 6.2 x 6.2mm. Provides a stable, broad footprint for mounting. Fixing height is 8mm across all four deflection positions. Industries served by this mount family include agriculture, power generation, marine, railway and mass transit, automotive, construction and off-highway, and military and defence applications. This mount is part of a wider instrument and general mountings range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 12 |
|---|---|
| Width / dimension B (mm) | 40 |
| Height / dimension C (mm) | M6 |
| Outer diameter D (mm) | 52 |
| Diameter / thread d1 (mm) | 40 |
| Dimension E1 (mm) | 64 |
| Dimension E2 (mm) | 44 |
| Fixing hole / dimension F (mm) | 2.5 |
| Fixing hole spacing G (mm) | 6.2 x 6.2 |
| /1 mm | 8 |
| /2 mm | 8 |
| /3 mm | 8 |
| /4 mm | 8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM6050 | FM4020-75 | FM80130 | FM6024-75 | FM100260 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Size | 32mm | 40mm | 48mm | 60mm | 68mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 51-100mm |
| Thread | M6 | M6 | M8 | M6 | M10 |
A. The FM4012 is an instrument and general mounting designed to provide vibration isolation for sensitive items including instruments, electronics and light equipment where a compact, low-load mount is required.
A. The mount has a height (A) of 12mm, flange diameter (B and D1) of 40mm, overall diameter (D) of 52mm, thread (C) of M6, E1 of 64mm, E2 of 44mm, washer thickness (F) of 2.5mm, washer size (G) of 6.2 x 6.2mm, and fixing height of 8mm across all four deflection positions.
A. The FM4012 may be loaded in shear, compression, or a combination of both, allowing flexibility in how it is oriented and integrated within an assembly.
A. The mount uses rubber-to-metal bonded construction, in which the elastomeric element is permanently bonded to the metal flanges to form a single integrated unit.
A. This family of mounts serves agriculture, power generation, marine, railway and mass transit, automotive, construction and off-highway, and military and defence applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Yes — related variants include FM007, FM100, FM1500, FM1566, FM200, FM209, FM25 and FM400, each covering different load and dimensional requirements. See the linked listings for full specifications.
