Carrying loads across a defined lower-load band, the FM80130 is a 48 mm flanged anti-vibration mount with an M8 thread, engineered specifically for instruments, electronics and light equipment where vibration isolation of sensitive items is the priority. Its rubber-to-metal bonded construction transmits minimal vibration energy between mounted component and supporting structure, protecting delicate assemblies from the movement that shortens their operational life. The mount's geometry, a 48 mm outer diameter (A), 40 mm body depth (B), M8 stud thread (C), and a flange slot profile of 12.2 x 8.2 mm (G). Positions it cleanly within the lightweight end of the flanged mounting range. The 2.5 mm static deflection figure (F) reflects the softer characteristic appropriate to its load band, delivering the greater deflection and better isolation that source confirms is the hallmark of softer-grade rubber at lower loads. The mount may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility in mounting orientation. Applications span the industries where instrument and general mounting is critical: agriculture, power generation, marine, railway and mass transit, automotive, construction and off-highway, and military and defence. By absorbing and attenuating vibration at source, the FM80130 improves machinery lifespan, protects surrounding structures from transmitted load, and contributes to improved operator comfort across all these sectors. This mount forms part of a broader flanged mounting range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 48 |
|---|---|
| Width / dimension B (mm) | 40 |
| Height / dimension C (mm) | M8 |
| Outer diameter D (mm) | 100 |
| Diameter / thread d1 (mm) | 80 |
| Dimension E1 (mm) | 122 |
| Dimension E2 (mm) | 84 |
| Fixing hole / dimension F (mm) | 2.5 |
| Fixing hole spacing G (mm) | 12.2 x 8.2 |
| /1 mm | 8 |
| /2 mm | 8 |
| /3 mm | 8 |
| /4 mm | 8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

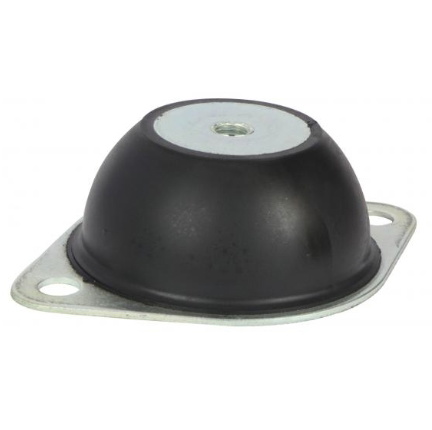

| PRODUCT NUMBER | FM4020-75 | FM6024-75 | FM6050 | FM100260 | FM8027-75 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Size | 40mm | 60mm | 32mm | 68mm | 80mm |
| Size Range | 26-50mm | 51-100mm | 26-50mm | 51-100mm | 51-100mm |
| Thread | M6 | M6 | M6 | M10 | M8 |
A. The FM80130 has an outer diameter (A) of 48 mm, a body depth (B) of 40 mm, an M8 thread (C), an overall height (D) of 100 mm, a flange diameter (D1) of 80 mm, and a flange slot profile (G) of 12.2 x 8.2 mm. The E1 dimension is 122 mm and E2 is 84 mm, with a static deflection (F) of 2.5 mm.
A. The FM80130 is part of the instrument and general mountings family, designed for lightweight, low-load applications — specifically instruments, electronics and light equipment where protection of sensitive items from vibration is the primary requirement.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation to suit different installation configurations.
A. The FM80130 uses rubber-to-metal bonded construction, which bonds the rubber element directly to the metal components to provide a secure, durable anti-vibration assembly.
A. The flanged mounting range is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Yes — companion variants in the flanged mounting range include FM007, FM100, FM1500, FM1566, FM200, FM209, FM25 and FM400, covering a range of load capacities and dimensional configurations.
