Product Number: OSM100-B
Variations

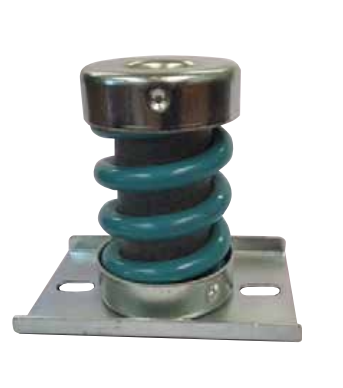

With a rated maximum load of 100 kg with a deflection of 23 mm, the OSM100-B is an open spring mounting built for mainstream general-machinery applications where moderate loads demand reliable low-frequency vibration isolation. At 51 mm on dimension A and 106 mm on dimension E, this Type B mount sits in the mid-range of the open spring mounting family, offering a practical balance between load capacity and dynamic movement that suits a broad spread of industrial plant and mobile equipment. Constructed with rubber-to-metal bonded technology, the OSM100-B can be loaded in compression, shear, or a combination of both, giving installation engineers the flexibility to match mounting orientation to the demands of the application. The open spring design is intended for use under normal working conditions, with deflection kept within the 20 mm general limit specified for this family. By absorbing vibration energy at the mount rather than transmitting it through the supporting structure, these mountings help improve machinery lifespan, protect surrounding structures, and contribute to improved operator comfort. The OSM100-B carries M8 thread (dimension C) and presents overall envelope dimensions of B 72 mm, D 70 mm, and F 11×16 mm, with a critical frequency figure of 80. Industries where this mounting finds regular application include power generation, agriculture, marine installations, construction and off-highway equipment, and railway and mass transit systems, all of which routinely impose the moderate sustained loads for which this mid-range variant is optimised. This mounting is available in a range of sizes and load capacities.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | B |
|---|---|
| Overall length / diameter A (mm) | 51 |
| Width / dimension B (mm) | 72 |
| Height / dimension C (mm) | M8 |
| Across flats / clearance CF (mm) | 80 |
| Outer diameter D (mm) | 70 |
| Dimension E (mm) | 106 |
| Fixing hole / dimension F (mm) | 11x16 |
| Max load (kg) | 100 |
| Deflection (mm) | 23 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSM100-C | OSM125-C | OSM15-C | OSM25-C | OSM5-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 51mm | 51mm | 51mm | 51mm | 51mm |
| Deflection | 23 | 23 | 23 | 23 | 23 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M15 | M25 | M5 | ||
A. The OSM100-B has a maximum load rating of 100 kg and a deflection of 23 mm, making it suitable for mainstream general-machinery applications operating under normal working conditions.
A. Dimension A is 51 mm, B is 72 mm, D is 70 mm, E is 106 mm, and F is 11×16 mm. The thread size (dimension C) is M8 and the critical frequency (CF) is 80.
A. The mount may be loaded in compression, shear, or a combination of both, providing flexibility in installation orientation to suit the specific demands of the application.
A. The OSM100-B is suited to power generation, agriculture, marine, construction and off-highway, and railway and mass transit applications, as well as other industrial plant where moderate sustained loads and low-frequency vibration isolation are required.
A. It uses rubber-to-metal bonded construction. The open spring design is intended for use under normal working conditions, with deflection observed within the 20 mm general family limit.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. Related variants include OSM15-A, OSM15-B, OSM15-C, OSM25-A, OSM100-A, OSM100-C, OSM125-B, and OSM125-C, covering a range of load capacities and sizes.
