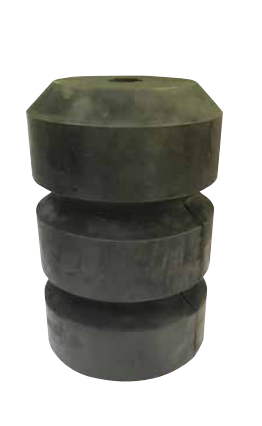

Rated to a nominal static suspension load of 2,000 kg and engineered to absorb shock at up to 16,595 kg in triple and rectangular configurations, the HRS260 hollow rubber spring occupies the heavy end of the range and is built for demanding duty where metal coil springs would lack the inherent damping that rubber construction provides. Progressive stiffness and rubber-to-metal bonded construction make it capable of handling high fatigue cycles without maintenance, while a maximum deflection of 110 mm at peak load gives the spring useful travel under severe impact events. As an assister spring operating in continuous static load service, the HRS260 is rated to 9,500 kg, making it well suited to secondary suspension and load-support roles alongside primary springs in heavily laden vehicles and trailers. The progressive stiffness characteristic means the spring stiffens as deflection increases, providing natural resistance to bottoming-out under shock or overload conditions. Rubber-to-metal bonding eliminates the need for separate fastening interfaces and maintains positional integrity throughout the service life of the assembly. The HRS260 is appropriate for applications where high static and dynamic loads must be managed: commercial and off-road vehicle suspension systems, heavy trailers, agricultural machinery, construction and off-highway equipment, power generation plant, marine installations, and railway and mass transit components. It may be loaded in shear, compression, or a combination of both, which broadens the range of mounting geometries it can serve in suspension, buffer, and bump-stop roles.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Nominal static load as suspension spring (kg) | 2000 |
|---|---|
| Max continuous static load as assister (kg) | 9500 |
| Max load, triple/rectangular (kg) | 16595 |
| Deflection at max load (mm) | 110 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | ESM | ESL25/800 | ESL25/700 | ESL25/600 | ESL25/500 | ESL25/400 | CSM1000-45 | CSM1000-60 | CSM1000-75 | CSM2000-45 | CSM2000-60 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 150mm | 180mm | 180mm | 180mm | 180mm | 180mm | 50mm | 50mm | 50mm | 76mm | 76mm |
| Deflection | 25 | 25 | 25 | ||||||||
| Overall Height | 127mm | 127mm | |||||||||
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 51-100mm | ||
| Thread | M12 | M16 | M16 | M16 | M16 | M16 | M8 | M8 | M8 | M10 | M10 |
A. The HRS260 has a nominal static load rating of 2,000 kg when used as a primary suspension spring.
A. As an assister spring, the HRS260 is rated to a maximum continuous static load of 9,500 kg.
A. In triple and rectangular configurations, the HRS260 carries a maximum load of 16,595 kg.
A. The HRS260 has a deflection of 110 mm at maximum load.
A. The HRS260 can be used as a sole suspension spring, a secondary assister spring, and as a buffer or bump-stop shock absorber, and may be loaded in shear, compression, or a combination of both.
A. It is suited to commercial and off-road vehicle suspension, heavy trailers, agricultural machinery, construction and off-highway equipment, power generation, marine installations, and railway and mass transit applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. No. The rubber-to-metal bonded construction of the HRS260 is maintenance free throughout its service life.
