Product Number: CSM2000-45

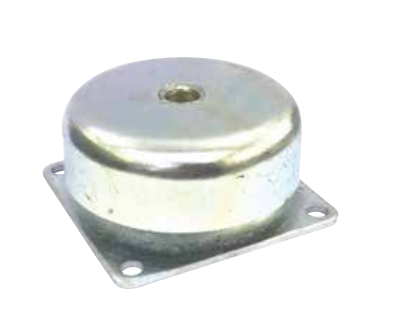

Where maximum vibration isolation takes priority over restraint, the CSM2000-45 Cup Shock Mounting delivers. At 76 mm diameter with an M10 thread and a 45 Shore A rubber hardness, this is the softest grade in the CSM2000 family, engineered to yield the greatest deflection under load and the most effective isolation of lower-frequency vibration. With a maximum load rating of 180 kg, it is sized for lighter or sensitive equipment where compliance and movement absorption matter more than rigid restraint. The rubber-to-metal bonded construction integrates the elastomer and metal components into a unified assembly, resisting pull-out and maintaining alignment through service. At 45 Shore A, the soft rubber compound prioritises absorption: it deflects more freely under applied load than the medium or firm grades, allowing it to attenuate vibration at frequencies that stiffer rubbers would transmit. This characteristic makes it the grade of choice where the equipment itself is delicate or where the surrounding structure must be shielded from recurring low-level excitation. Application scope spans instruments, electronics, and light equipment across construction and off-highway machinery, agricultural plant, marine installations, power generation, railway and mass transit systems, automotive applications, and military and defence platforms. Mounts may be loaded in shear, compression, or a combination of the two. In service, the mount improves machinery lifespan, reduces transmitted vibration to adjacent structures, and enhances operator comfort. The CSM2000 range is also available in 60 Shore A (CSM2000-60) and 75 Shore A (CSM2000-75) for higher-load or lower-deflection requirements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CSM2000-60 | CSM2000-75 | CSM1000-45 | CSM1000-60 | CSM1000-75 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 76mm | 76mm | 50mm | 50mm | 50mm |
| Size Range | 51-100mm | 51-100mm | 26-50mm | 26-50mm | 26-50mm |
| Thread | M10 | M10 | M8 | M8 | M8 |
A. The CSM2000-45 has a maximum load rating of 180 kg.
A. The CSM2000-45 has the following dimensions: A (outer diameter) 76 mm, B 38 mm, C thread M10, D 63.5 mm, E 6.7 mm, F 76 mm.
A. A 45 Shore A rubber grade deflects more under load than the 60 or 75 Shore A grades, providing greater vibration isolation — particularly at lower frequencies. It is the preferred choice for sensitive instruments, electronics, and lighter equipment where isolation performance takes priority over load restraint.
A. The mount may be loaded in shear, compression, or a combination of the two, depending on the installation orientation and application requirements.
A. The CSM2000-45 is suited to instruments, electronics, and light equipment across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The CSM2000 range is available in 60 Shore A (CSM2000-60) and 75 Shore A (CSM2000-75) for higher-load or lower-deflection applications. The CSM1000 family offers equivalent soft-grade isolation at a smaller diameter.
