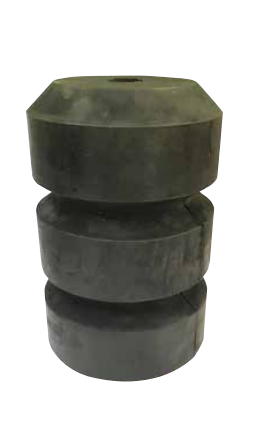

Engineered for heavy-load suspension and shock absorption duties, the Hollow Rubber Spring HRS225 carries a nominal static load of 3,500 kg as a primary suspension spring and accepts up to 10,600 kg as a continuous static assister spring. In triple or rectangular configurations, maximum load capacity reaches 15,900 kg, with a deflection at maximum load of 45 mm, making this the highest-capacity unit in the hollow rubber spring range. Constructed with rubber-to-metal bonded technology, the HRS225 delivers the progressive stiffness characteristic of the hollow rubber spring family: as deflection increases, spring rate rises proportionally, providing controlled resistance under the severe dynamic loads typical of heavy commercial vehicles, off-road plant, and demanding trailer applications. The maintenance-free construction eliminates the lubrication and corrosion concerns associated with metal coil springs, and the inherent damping of the rubber compound reduces transmitted vibration energy rather than simply containing it. The HRS225 is suited to primary and secondary suspension roles in construction and off-highway equipment, agricultural machinery, military and defence vehicles, and heavy-duty commercial trailers, wherever high fatigue life and load capacity must be combined with operator comfort and protection of surrounding structures. The spring may be loaded in compression, shear, or a combination of both. For specialist environments, oil-resistant and high-temperature rubber compounds, as well as stainless steel metalwork, are available on request. This spring forms part of a broader hollow rubber spring range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Nominal static load as suspension spring (kg) | 3500 |
|---|---|
| Max continuous static load as assister (kg) | 10600 |
| Max load, triple/rectangular (kg) | 15900 |
| Deflection at max load (mm) | 45 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CSM1000-45 | CSM1000-60 | CSM1000-75 | CSM2000-45 | CSM2000-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 50mm | 50mm | 50mm | 76mm | 76mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 51-100mm |
| Thread | M8 | M8 | M8 | M10 | M10 |
A. The HRS225 has a nominal static load of 3,500 kg when used as a primary suspension spring.
A. When used as a secondary assister spring, the HRS225 accepts a maximum continuous static load of 10,600 kg.
A. In triple and rectangular arrangements, the HRS225 carries a maximum load of 15,900 kg.
A. Deflection at maximum load is 45 mm.
A. The HRS225 may be loaded in compression, shear, or a combination of both, depending on the application and mounting arrangement.
A. The HRS225 is suited to primary and secondary suspension systems, assister spring duties, and buffer or bump-stop shock absorption roles in heavy commercial vehicles, construction and off-highway equipment, agricultural machinery, heavy-duty trailers, military and defence vehicles, and marine or railway applications.
A. Yes — stainless steel metalwork, oil-resistant rubber compounds, and high-temperature rubber options, as well as additional and custom sizes, are available on request.
