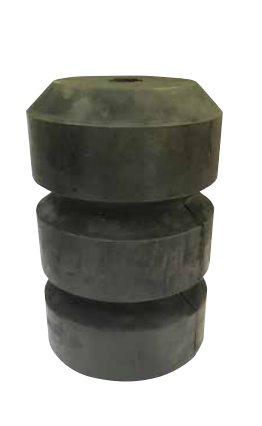

Engineered for lighter-duty suspension and assister roles, the Hollow Rubber Spring HRS110181 delivers a nominal static load of 300 kg as a primary suspension spring, a maximum continuous static load of 1,275 kg in assister applications, and a maximum load of 2,250 kg in triple and rectangular configurations, with a deflection at maximum load of 90 mm. Constructed using rubber-to-metal bonded technology, this spring offers the progressive stiffness characteristic of the hollow rubber spring family, stiffness increases as load rises. Combined with high fatigue life and fully maintenance-free service throughout its working life. The progressive load-deflection behaviour makes HRS110181 particularly suited to sensitive installations where ride isolation and compliance under lighter loads are the primary requirements. Hollow rubber springs of this type serve as sole suspension springs, secondary assister springs, or buffer and bump-stop shock absorbers, offering a genuine alternative to metal coil springs with the added benefit of increased damping. The rubber-to-metal bonded construction protects surrounding structures, improves machinery lifespan, and enhances operator comfort. Typical applications for springs in this load class span vehicle suspension systems, trailers, commercial and off-road vehicles, agricultural equipment, and construction plant. The design is also suited to power generation, marine, railway and mass transit, automotive, and military and defence settings. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for specialist environments. This spring is part of a range covering load capacities from approximately 20 kg to 10,600 kg.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Nominal static load as suspension spring (kg) | 300 |
|---|---|
| Max continuous static load as assister (kg) | 1275 |
| Max load, triple/rectangular (kg) | 2250 |
| Deflection at max load (mm) | 90 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | ESM | ESL25/800 | ESL25/700 | ESL25/600 | ESL25/500 | ESL25/400 | CSM1000-45 | CSM1000-60 | CSM1000-75 | CSM2000-45 | CSM2000-60 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 150mm | 180mm | 180mm | 180mm | 180mm | 180mm | 50mm | 50mm | 50mm | 76mm | 76mm |
| Deflection | 25 | 25 | 25 | ||||||||
| Overall Height | 127mm | 127mm | |||||||||
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 51-100mm | ||
| Thread | M12 | M16 | M16 | M16 | M16 | M16 | M8 | M8 | M8 | M10 | M10 |
A. The nominal static load for HRS110181 in a suspension spring application is 300 kg.
A. Yes. When used as a secondary assister spring, HRS110181 has a maximum continuous static load of 1,275 kg.
A. In triple and rectangular configurations the maximum load is 2,250 kg.
A. The deflection at maximum load is 90 mm.
A. HRS110181 is designed to operate as a sole suspension spring, a secondary assister spring, or a buffer and bump-stop shock absorber, providing a maintenance-free alternative to metal coil springs with increased damping.
A. The spring is suited to vehicle suspension systems, trailers, commercial and off-road vehicles, agricultural equipment, construction plant, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Variant siblings covering different load and dimensional envelopes include HRS103B/1, HRS103BH, HRS140120, HRS1525H, HRS1525M, HRS155150, HRS170H, and HRS5556.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
