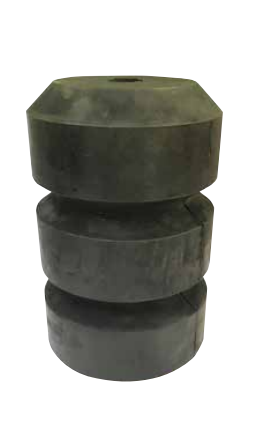

Product Number: HRS110180
Compact and well-suited to lighter, sensitive installations, the HRS110180 Hollow Rubber Spring delivers progressive stiffness and high fatigue life within a maintenance-free, rubber-to-metal bonded construction. With a nominal static load of 215 kg as a suspension spring, a maximum continuous static load of 915 kg as an assister spring, and a maximum load of 1,960 kg in triple and rectangular configurations, this unit achieves up to 90 mm of deflection at maximum load, characteristics that make it particularly effective where controlled, compliant movement is required under moderate loading conditions. Hollow Rubber Springs of this type serve as sole suspension springs, secondary assister springs, or buffer and bump-stop shock absorbers, offering a practical alternative to metal coil springs with the added benefit of increased damping. The progressive stiffness characteristic means resistance increases gradually with deflection, protecting surrounding structures and improving operator comfort across a range of operating conditions. The rubber-to-metal bonded construction is maintenance free throughout its service life, contributing directly to improved machinery lifespan. The HRS110180 is suited to applications including vehicle suspension systems, trailers, agricultural equipment, and construction and off-highway machinery, where lighter load profiles and compact packaging are priorities. Mounts may be loaded in shear, compression, or a combination of both, extending the range of installation geometries available to the design engineer. Further industries served include power generation, marine, railway and mass transit, and automotive. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubbers. Are available on request for specialist environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Nominal static load as suspension spring (kg) | 215 |
|---|---|
| Max continuous static load as assister (kg) | 915 |
| Max load, triple/rectangular (kg) | 1960 |
| Deflection at max load (mm) | 90 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CSM1000-45 | CSM1000-60 | CSM1000-75 | CSM2000-45 | CSM2000-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 50mm | 50mm | 50mm | 76mm | 76mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 51-100mm |
| Thread | M8 | M8 | M8 | M10 | M10 |
A. The HRS110180 has a nominal static load of 215 kg when used as a sole suspension spring.
A. In triple and rectangular configurations, the HRS110180 has a maximum load capacity of 1,960 kg.
A. The HRS110180 achieves up to 90 mm of deflection at maximum load.
A. When used as a secondary assister spring, the HRS110180 has a maximum continuous static load of 915 kg.
A. The HRS110180 is suited to vehicle suspension systems, trailers, agricultural equipment, construction and off-highway machinery, power generation, marine, railway and mass transit, and automotive applications — particularly where lighter load profiles and compact installation envelopes are required.
A. Yes. Hollow Rubber Springs of this type are designed for use as sole suspension springs, secondary assister springs, or buffer and bump-stop shock absorbers, and may be loaded in shear, compression, or a combination of both.
A. Yes. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
