Product Number: ESS20/15
Compact and precise, the ESS20/15 is the lightest-duty enclosed spring mounting in this range, rated to a maximum load of 15 kg with up to 20 mm of deflection on an M8 thread and a 76 mm body diameter. Where sensitive equipment, lower-mass machinery, or installations with limited clearance demand genuine low-frequency isolation, this mount delivers the high deflection and low natural frequency that rubber-alone mounts cannot match. The rubber-to-metal bonded construction allows the mount to accept loading in shear, compression, or a combination of both, giving installation engineers flexibility in how the mount is oriented and positioned. The enclosed spring design protects internal components from contamination and mechanical damage, an advantage in agricultural, marine, and construction environments where particulate and moisture ingress would otherwise compromise performance over time. With outer dimensions of 76 mm (A) × 63 mm (B), a compressed height range of 54–60 mm (C), and a flange depth of 6.5 mm (F), the ESS20/15 is suited to light-duty generator sets, compact power units, small marine auxiliaries, and automotive or off-highway sub-assemblies where operator comfort and structural protection of nearby components are priorities. The mount improves machinery lifespan and reduces the transmission of vibration to surrounding structures. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubbers. Are available on request for demanding or specialist environments. This mount belongs to a broader family of enclosed and open spring mountings.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

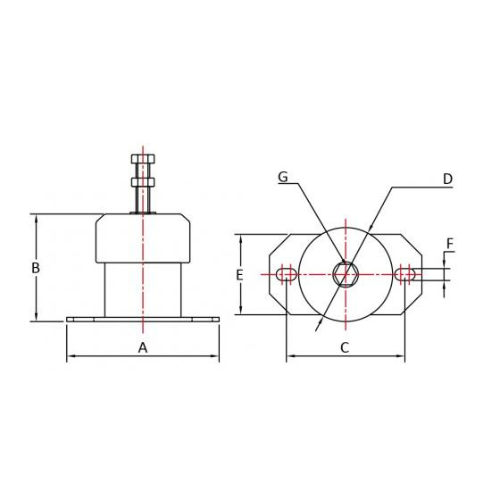

| Base Width (A) | 76mm |
|---|---|
| Overall Height (B) | 63mm |
| Rubber Body Dimension (C) | 54-60mm |
| Center Hole Dimension (D) | 48mm |
| Hole Center Distance (E) | 38mm |
| Mounting Plate Thickness (F) | 6.5mm |
| Thread Size (G) | M8 |
| Maximum Load(kg) | 15mm |
| Deflection(mm) | 20 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESS20/15 is rated to a maximum load of 15 kg and provides up to 20 mm of deflection.
A. The body diameter (A) is 76 mm, width (B) is 63 mm, compressed height (C) is 54–60 mm, dimension D is 48 mm, dimension E is 38 mm, flange depth (F) is 6.5 mm, and the thread size (G) is M8.
A. The ESS20/15 is suited to light-duty applications across agriculture, marine, power generation, construction and off-highway, automotive, and railway and mass transit sectors — wherever low-frequency isolation, improved machinery lifespan, and protection of surrounding structures are required.
A. Yes. The ESS20/15 can be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation.
A. The mount uses rubber-to-metal bonded construction, which integrates the rubber and metal components to ensure consistent load transfer and durability.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Related variants include the ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400, covering a range of load ratings and deflection specifications.
