Product Number: TM 250
Variations

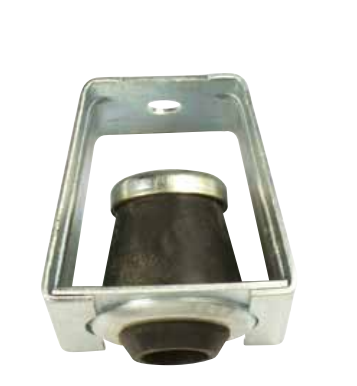

Demanding suspended installations call for a hanger rated to carry the load, and the TM 250 rubber hanger is built precisely for that duty. With a maximum load rating of 250 kg and a 35 mm deflection capacity, this 16 mm bore unit occupies the upper reaches of the range, making it the appropriate choice where heavier pipework, plant, or equipment must be suspended with effective vibration and noise isolation. Rubber-to-metal bonded construction gives the TM 250 its structural integrity, combining a vulcanised rubber element with metal end fittings to resist the combined shear and compression forces that arise under high suspended load. The rubber element absorbs vibration energy and decouples structure-borne noise, protecting surrounding structures and improving operator comfort. Key dimensions are B 120 mm, F 75 mm, H 155 mm, with bore dimensions A and D both at 16 mm and thread dimension C at 14 mm. Applications drawing on these load and deflection characteristics include heavy pipework runs in construction and off-highway machinery, suspended plant in power generation installations, marine pipework systems subject to engine-induced shock loading, and railway or mass transit environments where both load capacity and isolation performance are required simultaneously. The hanger is also suited to agricultural, automotive, and military and defence contexts where robust suspension under load is a recurring requirement. The TM 250 forms part of a complete rubber hanger range. Lighter-duty and alternative load options are available as TM 25, TM 50, TM 75, TM 100, TM 150, and TM 350.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Width / dimension B (mm) | 120 |
|---|---|
| Fixing hole / dimension F (mm) | 75 |
| Overall height H (mm) | 155 |
| Overall length / diameter A (mm) | 16 |
| Outer diameter D (mm) | 16 |
| Height / dimension C (mm) | 14 |
| Deflection (mm) | 35 |
| Max load (kg) | 250 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
 75.png?v=1785491361)
Rubber Hanger - Anti-Vibration, Minimum Load 25Kg, Maximum Load 75Kg - TVAR(M10) 75
£17.26
£16.92
2% OFF
|
 75.png?v=1785491361)
Rubber Hanger - Anti-Vibration, Minimum Load 25Kg, Maximum Load 75Kg - TVAR(M6) 75
£17.26
£16.92
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TM 100 | TM 75 | TVAR 75 | TVAR(M10) 75 | TVAR(M6) 75 |
| Type | Hanger | Hanger | Hanger | Hanger | Hanger |
| Size | 12mm | 12mm | |||
| Deflection | 24 | 24 | |||
| Size Range | 11-25mm | 11-25mm | |||
| Thread | M10 | M6 | |||
| Minimum Load | 25 | 25 | 25 | ||
A. The TM 250 has a maximum load rating of 250 kg, placing it in the upper tier of the rubber hanger range and making it suitable for heavier suspended pipework and plant.
A. The TM 250 offers a maximum deflection of 35 mm, allowing the rubber element to absorb vibration energy and reduce structure-borne noise transmission in suspended installations.
A. B: 120 mm, F: 75 mm, H: 155 mm, bore A: 16 mm, bore D: 16 mm, thread C: 14 mm. These dimensions should be verified against the installation requirements before ordering.
A. The TM 250 is suited to construction and off-highway, power generation, marine, railway and mass transit, agriculture, automotive, and military and defence applications where heavier suspended pipework or equipment must be isolated from vibration and shock.
A. The hanger uses rubber-to-metal bonded construction, in which a vulcanised rubber element is bonded to metal end fittings to handle combined shear and compression loading in suspended installations.
A. Yes — the rubber hanger range includes TM 25, TM 50, TM 75, TM 100, TM 150, and TM 350, covering a spread of load and deflection requirements. Stainless steel metalwork, oil-resistant rubbers, high-temperature rubbers, and custom sizes are also available on request.
