Product Number: TM 100
Variations
General-machinery suspension calls for a hanger that balances load capacity with meaningful deflection, and the TM 100 rubber hanger is built precisely for that middle ground. With a 12 mm bore (dimension A), an overall height of 100 mm (H), a body width of 75 mm (B) and a flange diameter of 55 mm (F), this mid-range unit delivers a maximum rated capacity of 100 kg alongside 24 mm of deflection travel, figures that place it firmly in the mainstream of suspended-mounting applications where moderate loads and reliable vibration isolation must coexist. Construction follows rubber-to-metal bonded principles, pairing a metal shell and threaded stud with a vulcanised rubber element that accepts loading in shear, compression or a combination of both. The bonded interface distributes stress evenly across the rubber body, maintaining isolation performance under sustained load and resisting the progressive deterioration that loose-fitting assemblies suffer. The 11 mm collar dimension (C) and 30 mm stud diameter (D) give confident engagement across standard suspended-equipment interfaces. The TM 100 is suited to pipework suspension, mechanical plant, HVAC ductwork and light structural equipment in sectors including construction and off-highway, power generation, marine, agricultural machinery, railway and mass transit, and automotive applications. By isolating vibration at source, the hanger protects surrounding structures from transmitted dynamic forces, extends machinery service life and reduces acoustic disturbance for operators and adjacent personnel. The TM 100 forms part of a rated range of rubber hangers.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Width / dimension B (mm) | 75 |
|---|---|
| Fixing hole / dimension F (mm) | 55 |
| Overall height H (mm) | 100 |
| Overall length / diameter A (mm) | 12 |
| Outer diameter D (mm) | 30 |
| Height / dimension C (mm) | 11 |
| Deflection (mm) | 24 |
| Max load (kg) | 100 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

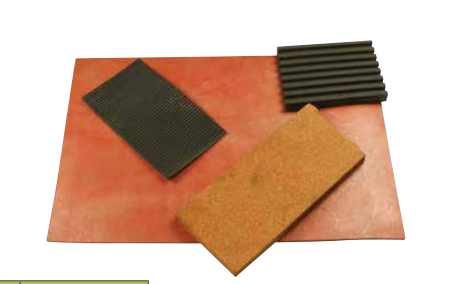

| PRODUCT NUMBER | PCGR601410 | PCGR451410 | PCGR301410 | PCGR151410 | GM18 | GM15 |
| Thread Size | M6 | M5 | ||||
| Mount Type | Rubber Sheets | Rubber Sheets | Rubber Sheets | Rubber Sheets | Instrument & General | Instrument & General |
| Size Band | 0–15mm | 0–15mm | 0–15mm | 0–15mm | 0–15mm | 0–15mm |
A. The TM 100 has a bore (A) of 12 mm, body width (B) of 75 mm, flange diameter (F) of 55 mm, overall height (H) of 100 mm, stud diameter (D) of 30 mm and collar dimension (C) of 11 mm.
A. The TM 100 is rated to a maximum of 100 kg and provides up to 24 mm of deflection under load.
A. It uses rubber-to-metal bonded construction, with the rubber element vulcanised to a metal shell and threaded stud. This bonded interface distributes load evenly and the hanger accepts loading in shear, compression or a combination of both.
A. The TM 100 is suited to suspended pipework, mechanical plant, HVAC ductwork and light structural equipment across sectors including construction and off-highway, power generation, marine, agricultural machinery, railway and mass transit, and automotive applications.
A. Rubber hangers isolate vibration and noise in suspended applications, protecting surrounding structures from transmitted dynamic forces, improving machinery service life and reducing acoustic disturbance for operators.
A. Yes — the range includes the TM 25, TM 50 and TM 75 for lighter loads, and the TM 150, TM 250 and TM 350 for higher-capacity requirements.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
