Product Number: PB125
Variations
Compact installations and lighter-load applications call for a buffer that absorbs and dissipates energy precisely where the contact surface meets the moving component. The PB125 Square Plate Buffer meets that requirement with a 100 mm square plate, an overall height of 80 mm, and a rubber-to-metal bonded construction engineered to cushion machinery against impact shocks from external moving components. Its max load rating of 9,680 kg, combined with a bolt-hole diameter of 9 mm, suits installations where control of deflection and reliable energy absorption are the priority. The rubber-to-metal bonded build is central to the PB125's performance. By absorbing and dissipating impact energy at the point of contact, the buffer reduces force transmission to surrounding structures, contributing to longer machinery service life and improved operator comfort. The flat plate geometry allows direct surface contact, making it straightforward to install as an elastic element or secondary stop across a range of equipment configurations. The PB125 is well suited to lighter-duty and space-sensitive applications in construction and off-highway equipment, agricultural machinery, elevators, and commercial vehicles. Its dimensional profile, d1 125 mm, A 100 mm, D2 100 mm, d 9 mm, H 80 mm, S 6 mm. Positions it for installations where a compact footprint is required alongside controlled energy management. Mounts in this family may be loaded in compression, shear, or a combination of both, depending on the installation axis. Custom configurations including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request.
The Square Plate buffers are an effective alternative solution to absorbing high levels of shock and load, giving equipment excellent protection. The heavy-duty rubber and mild steel flange, with four pre-drilled bolt holes, allows this mount to be extremely versatile.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

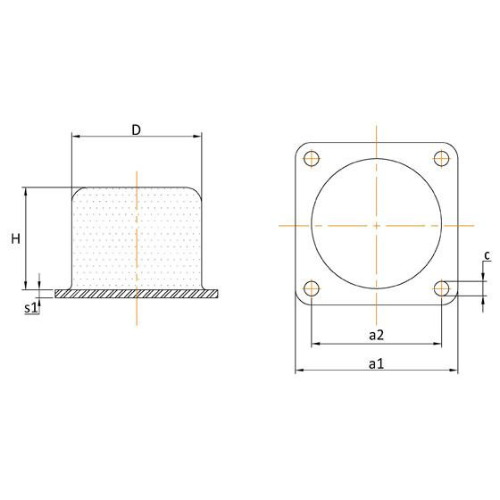

| Mounting Plate Length (a1) | 125mm |
|---|---|
| Mounting Plate Width (a2) | 100mm |
| Top Outer Dimension (D) | 100mm |
| Fixing Hole Dimension (d) | 9mm |
| Height (H) | 80mm |
| Base Plate Thickness (s1) | 6mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB30-60 | 100120MCB31-45 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 121mm | 100mm | 100mm | 100mm | |
| Height | 120mm | ||||
| Size | 105x121mm | 100x100mm | 100x100mm | 100x100mm | |
| Deflection | 30mm | 30 | 23 | 23 | 23 |
| Diameter | 105mm | 100mm | 100mm | 100mm | |
| Diameter Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Shore Hardness | 45 | 45 | 60 | 70 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The PB125 has an outer diameter D1 of 125 mm, a square plate dimension A of 100 mm, a base diameter D2 of 100 mm, a bolt-hole diameter d of 9 mm, an overall height H of 80 mm, and a plate thickness S of 6 mm.
A. The PB125 Square Plate Buffer has a maximum load rating of 9,680 kg.
A. The PB125 uses rubber-to-metal bonded construction, which enables it to absorb and dissipate impact energy effectively while maintaining structural integrity under load.
A. Square Plate Buffers in this range, including the PB125, may be loaded in compression, shear, or a combination of both, depending on the specific installation axis and application requirements.
A. The PB125 is suited to construction and off-highway equipment, agricultural machinery, elevators, commercial vehicles, and industrial machinery where compact buffer installations with controlled energy absorption are required.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. The range includes PB50, PB63, PB100, PB130, PB160, PB200, PB250, and PB1700-2, covering a variety of load capacities and dimensional envelopes to match different application requirements.
