Product Number: PB100
Variations
Sized for lighter, compact and sensitive installations where controlled energy absorption matters most, the PB100 Square Plate Buffer carries a maximum load of 6,110 kg across an 80 mm square footprint with a 100 mm base plate diameter. Its rubber-to-metal bonded construction cushions machinery against impact shocks and dissipates energy from secondary moving components, making it well suited to applications where installation space is restricted but reliable buffering performance is still required. The male flat buffer design keeps installation straightforward and cost-effective: the rubber element works by absorbing and dissipating impact energy either in shear, compression, or a combination of both, reducing impact force from an external object or acting as an elastic element in direct contact with a surface. At this size and load band, the mount is particularly effective where lower loads and tighter envelopes demand precise, repeatable cushioning without excess movement. This geometry can also improve operator comfort and protect surrounding structures from progressive wear. With overall height of 63 mm, a 9 mm fixing bore, a top plate dimension of 80 mm and a base plate thickness of 5 mm, the PB100 fits within compact machine frames across construction equipment, agricultural machinery, industrial plant, commercial vehicles, and elevator installations. Industries including power generation, marine, railway and mass transit, automotive, and military and defence also draw on square plate buffers of this type for primary impact protection and structural isolation.
The Square Plate buffers are an effective alternative solution to absorbing high levels of shock and load, giving equipment excellent protection. The heavy-duty rubber and mild steel flange, with four pre-drilled bolt holes, allows this mount to be extremely versatile.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

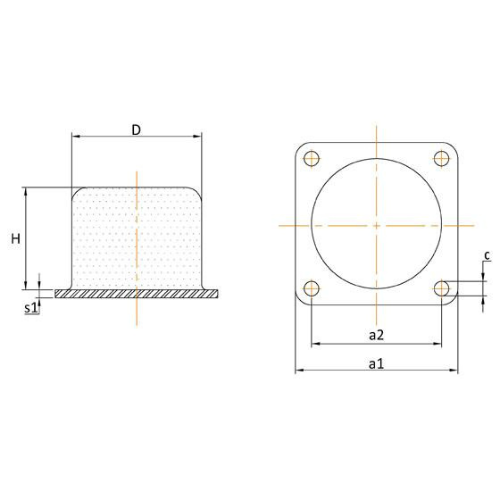

| Mounting Plate Length (a1) | 100mm |
|---|---|
| Mounting Plate Width (a2) | 80mm |
| Top Outer Dimension (D) | 80mm |
| Fixing Hole Dimension (d) | 9mm |
| Height (H) | 63mm |
| Base Plate Thickness (s1) | 5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£36.02
£35.31
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB30-60 | 100120MCB31-45 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 121mm | 100mm | 100mm | 100mm | |
| Height | 120mm | ||||
| Size | 105x121mm | 100x100mm | 100x100mm | 100x100mm | |
| Deflection | 30mm | 30 | 23 | 23 | 23 |
| Diameter | 105mm | 100mm | 100mm | 100mm | |
| Diameter Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Shore Hardness | 45 | 45 | 60 | 70 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The PB100 has a base plate diameter (D1) of 100 mm, a square plate side (A) of 80 mm, a top plate dimension (D2) of 80 mm, a fixing bore (d) of 9 mm, an overall height (H) of 63 mm, and a base plate thickness (S) of 5 mm.
A. The PB100 Square Plate Buffer has a maximum load rating of 6,110 kg.
A. The PB100 is suited to lighter, compact and sensitive installations across construction equipment, agricultural machinery, industrial plant, commercial vehicles, elevator systems, and machinery in marine, power generation, railway, automotive, and military and defence environments.
A. Square plate buffers absorb and dissipate energy from impact shocks caused by external moving components. The rubber-to-metal bonded element can be loaded in shear, compression, or a combination of both, reducing impact force and protecting surrounding structures from progressive damage.
A. Yes — the range includes PB50, PB63, PB125, PB130, PB160, PB1700-2, PB200, and PB250, covering a wide spread of footprint sizes and load capacities.
A. Custom configurations including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request.
