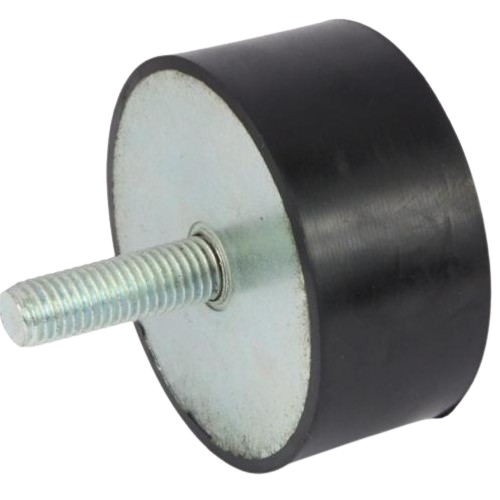

Product Number: 2515MFB18-60
Balancing vibration isolation with structural support, the 2515MFB18-60 is a 25 x 15 mm male flat buffer with an M6 x 18 threaded stud, rated to a maximum load of 104.0 kg with a deflection of 3.75 mm at 60 Shore A hardness. This medium-grade rubber-to-metal bonded mount occupies a practical middle ground in the range, making it well suited to general-purpose machinery installations where neither extreme softness nor high rigidity is required. Constructed using rubber-to-metal bonded technology, the flat buffer design provides low-cost shock and vibration absorption whilst remaining straightforward to install. At 60 Shore A, the rubber compound delivers a balanced response, absorbing and dissipating energy effectively across a broad range of operating conditions without the high deflection of softer grades or the restricted movement of firmer ones. The result is consistent damping that protects both the host machine and surrounding structures, whilst contributing to improved operator comfort. The 2515MFB18-60 is applicable across industrial machinery, agricultural equipment, commercial vehicles, construction equipment, and elevator installations, where a medium-hardness elastic element in direct contact with a surface or acting against a secondary component is called for. Its compact 25 x 15 mm footprint makes it equally relevant for light-duty general machinery panels, enclosures, and sub-frames where controlled cushioning under moderate load is the priority. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

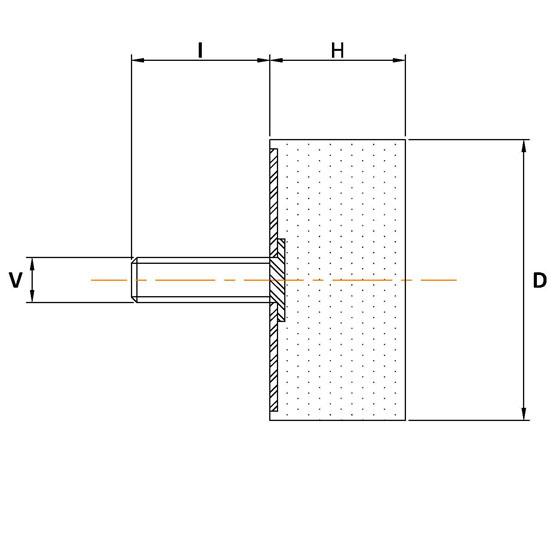

| Rubber Mount Dimension (D) | 25mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (V) | M6 |
| Bolt Length (I) | 18mm |
| Max Load (Kg) | 104 |
| Deflection (mm) | 3.75 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 4035FFB08-45 | 4035MFB23-45 | 2515FFB06-60 | 2518MFB18-60 | 3022MFB20-60 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 35mm | 35mm | 18mm | 22mm | |
| Height | 15mm | ||||
| Size | 40x35mm | 40x35mm | 25x15mm | 25x18mm | 30x22mm |
| Deflection | 8.75 | 8.8 | 3.75 | 4.25 | 5.5 |
| Diameter | 40mm | 40mm | 25mm | 30mm | |
| Diameter Range | 26-50mm | 26-50mm | 11-25mm | 26-50mm | |
| Length Range | 26-50mm | 26-50mm | 11-25mm | 11-25mm | |
| Shore Hardness | 45 | 45 | 60 | 60 | |
| Thread | M8 | M8 | M6 | M6 | M8 |
| Show More | |||||
A. The buffer measures 25 mm diameter by 15 mm height, with an M6 x 18 mm threaded stud. It carries a maximum load of 104.0 kg and has a deflection of 3.75 mm.
A. At 60 Shore A, this buffer sits in the medium range of the hardness scale. It provides a balanced combination of vibration isolation and load-bearing support, making it suitable for general-purpose machinery mounting where neither maximum deflection nor maximum rigidity is needed.
A. It is suited to industrial machinery, agricultural equipment, commercial vehicles, construction equipment, and elevator installations. Its compact dimensions and medium hardness make it applicable wherever a controlled elastic element is required under moderate load.
A. The rubber-to-metal bonded construction absorbs and dissipates energy from impact shocks and vibration. It can act as an elastic element in direct contact with a surface or cushion a secondary moving component, reducing impact force and protecting both the machine and surrounding structures.
A. Two further hardness grades are available: a 45 Shore A variant (2515MFB18-45), which offers greater deflection and improved isolation at lower loads, and a 70 Shore A variant (2515MFB18-70), which is suited to higher loads and applications requiring more resistance to movement.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
