Product Number: 2515FFB06-60

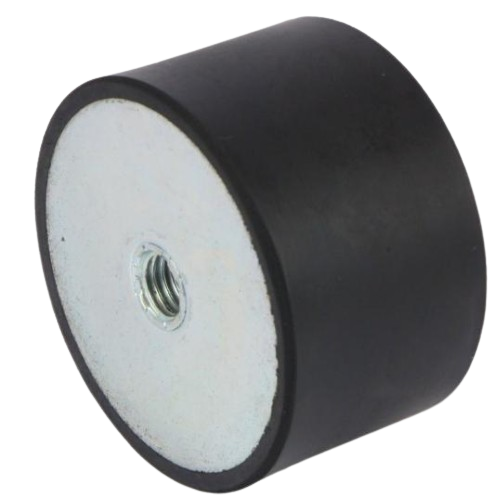

The 2515FFB06-60 is a 25 x 15 mm female flat buffer with an M6 thread and 60 Shore A rubber hardness, rated to a maximum load of 106.0 kg with a deflection of 3.75 mm, a pairing that positions this compact mount at the productive middle ground between isolation performance and load-carrying capacity. Suited to lighter, sensitive installations where a degree of controlled movement is desirable without sacrificing support, it addresses the broad band of general-purpose machinery mounting requirements encountered across everyday workshop and industrial environments. Rubber-to-metal bonded construction ensures the rubber element remains positively retained under cyclic loading, while the female threaded insert allows direct bolt-up to a mating fastener without additional hardware. The flat buffer geometry works primarily in compression and shear, absorbing and dissipating impact energy rather than transmitting it into the supporting structure. At 60 Shore A, the compound delivers a measurable deflection that smooths out vibration signatures from rotating or reciprocating machinery whilst still resisting the moderate loads typical of compact power units, conveyors, and auxiliary drive assemblies. Applications served by this grade and size include industrial machinery, construction equipment, agricultural equipment, commercial vehicles, and elevator installations where consistent energy dissipation and operator comfort improvement are priorities alongside machinery lifespan protection. The mount is equally applicable across power generation, marine, and automotive sectors wherever a balanced isolation characteristic at modest load is required.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

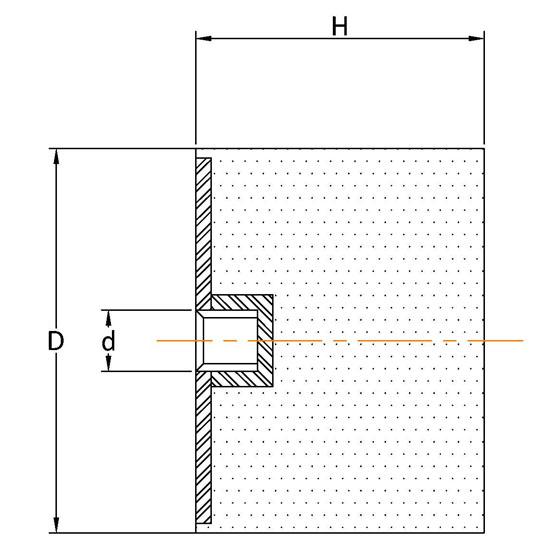

| Rubber Body Dimension (D) | 25mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (V) | M6 |
| Max Load (Kg) | 106 |
| Deflection (mm) | 3.75 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2510MFB20-45 | 3030MFB20-70 | 4035FFB08-45 | 2515MFB18-60 | 3040MFB20-70 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 10mm | 30mm | 35mm | 40mm | |
| Height | 15mm | ||||
| Size | 25x10mm | 30x30mm | 40x35mm | 25x15mm | 30x40mm |
| Deflection | 2.5 | 7.5 | 8.75 | 3.75 | 10 |
| Diameter | 25mm | 30mm | 40mm | 30mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | Up to 10mm | 26-50mm | 26-50mm | 26-50mm | |
| Shore Hardness | 45 | 70 | 45 | 70 | |
| Thread | M8 | M8 | M8 | M6 | M8 |
| Show More | |||||
A. The 2515FFB06-60 measures 25 mm diameter by 15 mm height with an M6 female thread. It is rated to a maximum load of 106.0 kg and offers a deflection of 3.75 mm.
A. 60 Shore A represents a medium rubber hardness. At this grade, the buffer delivers a balance between vibration isolation and load support, making it well suited to general-purpose machinery mounting where moderate loads and controlled deflection are both required.
A. The 2515FFB06-60 is suited to industrial machinery, construction equipment, agricultural equipment, commercial vehicles, and elevator installations. It is also applicable in power generation, marine, and automotive sectors where balanced anti-vibration performance at modest load ratings is needed.
A. The mount uses rubber-to-metal bonded construction and works primarily in compression and shear. The rubber element absorbs and dissipates impact energy from moving components, reducing the transmission of shock and vibration into the supporting structure and improving both machinery lifespan and operator comfort.
A. Yes. The same geometry is available in 45 Shore A (2515FFB06-45) for softer, higher-deflection isolation at lower loads, and in 70 Shore A (2515FFB06-70) for firmer, higher-load applications with reduced movement.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes beyond the standard range.
