Product Number: 5030MFB25-60

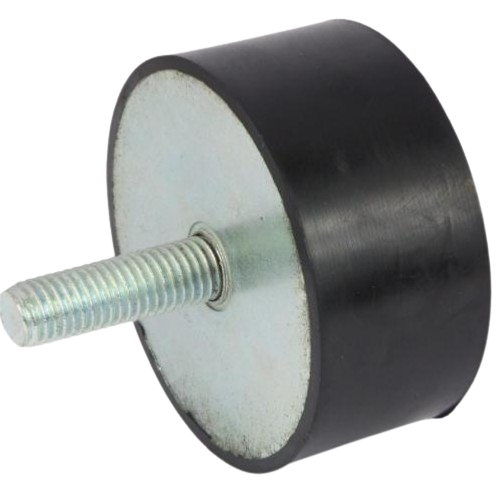

Striking a balance between load-bearing support and effective vibration isolation, the Male Flat Buffer 5030MFB25-60 is a 50 x 30 mm rubber-to-metal bonded buffer fitted with an M10 x 25 male thread, rated to a maximum load of 364.0 kg with a controlled deflection of 7.5 mm at 60 Shore A hardness. This mid-range hardness grade makes it well suited to mainstream general-machinery mounting at moderate loads, where neither excessive stiffness nor excessive compliance is desirable. Constructed with a rubber-to-metal bond, this Male Flat Buffer absorbs and dissipates energy from impact shocks and vibration generated by external moving components. The flat profile allows direct elastic contact with a surface, while the M10 x 25 stud provides straightforward, secure installation. At 60 Shore A, the buffer delivers the broad middle ground of the hardness range, carrying meaningful loads whilst retaining sufficient deflection to protect surrounding structures and improve operator comfort. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for specialist environments. Typical applications for this buffer span industrial machinery, construction equipment, power generation plant, agricultural equipment, and commercial vehicles where moderate impact and vibration loads are present. The 364.0 kg maximum load capacity and 7.5 mm deflection figure place this SKU firmly in the working range for general-purpose machinery mounting across construction and off-highway, marine, automotive, and agricultural sectors. Mounts of this type may be loaded in compression, shear, or a combination of both.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

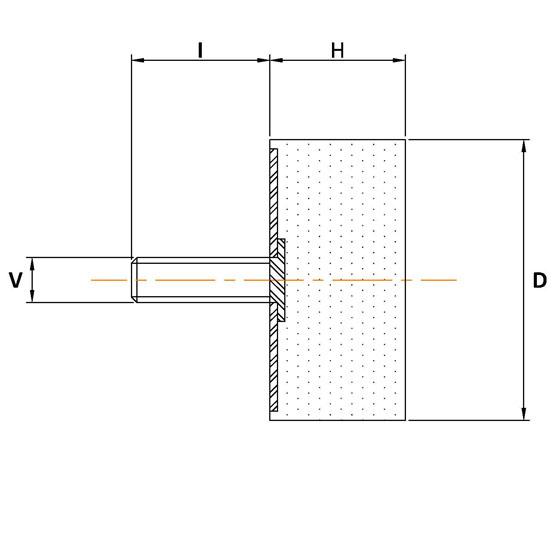

| Rubber Mount Dimension (D) | 50mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (V) | M10 |
| Bolt Length (I) | 25mm |
| Max Load (Kg) | 364 |
| Deflection (mm) | 7.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 5030FFB10-60 | 5018MFB25-45 | 5030FFB12-60 | 5040FFB10-70 | 5021FFB10-45 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 18mm | 30mm | 40mm | 21mm | |
| Height | 30mm | ||||
| Size | 50x18mm | 50x30mm | 50x40mm | 50x21mm | |
| Deflection | 7.5 | 4 | 7.5 | 10 | 5 |
| Diameter | 50mm | 50mm | 50mm | 50mm | |
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M10 | M10 | M12 | M10 | M10 |
| Show More | |||||
A. The buffer measures 50 mm diameter by 30 mm height (D x H) with an M10 x 25 male thread stud. It has a maximum load rating of 364.0 kg and a deflection of 7.5 mm.
A. This buffer is manufactured at 60 Shore A, a medium hardness grade. At this grade, the buffer provides a balance of vibration isolation and load support, making it appropriate for mainstream general-machinery mounting at moderate loads. Softer grades offer greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement.
A. The Male Flat Buffer 5030MFB25-60 is suited to industrial machinery, construction equipment, agricultural equipment, commercial vehicles, and power generation plant. Industries served include construction and off-highway, agriculture, marine, automotive, and railway and mass transit.
A. Male Flat Buffers absorb and dissipate energy from impact shocks and vibration produced by external moving components. The rubber element works in compression, shear, or a combination of both, reducing the impact force transferred to surrounding structures and improving operator comfort.
A. Yes. The same 50 x 30 mm geometry is available in 45 Shore A (5030MFB25-45) for softer isolation duties and 70 Shore A (5030MFB25-70) for higher-load applications. Additional sizes in the Male Flat Buffer range include 0808MFB06, 100100MFB44, 10030MFB41, 10040MFB44, 10050MFB41, and 10055MFB44.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
