Product Number: 3015FFB08-60

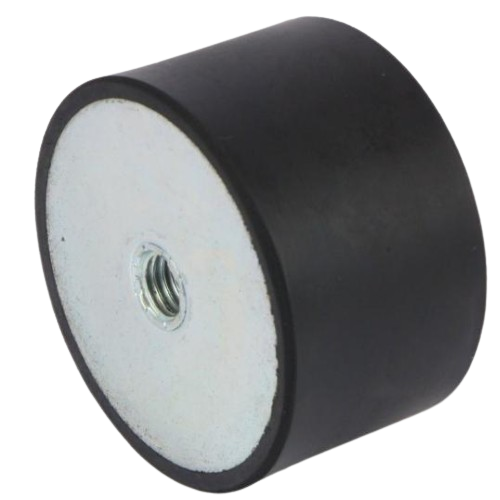

The 3015FFB08-60 is a 30 x 15 mm Female Flat Buffer with an M8 thread, moulded to 60 Shore A, a medium hardness that balances vibration isolation with load-bearing support across a broad range of machinery mounting duties. At this grade, the buffer carries a maximum load of 134.5 kg with a controlled deflection of 3.75 mm, making it well suited to applications where neither excessive movement nor rigid stiffness is desirable. Constructed using rubber-to-metal bonded technology, this flat buffer absorbs and dissipates energy on impact, cushioning machinery against shock from external moving components and reducing the transmission of vibration to surrounding structures. The medium Shore A compound delivers a compliance characteristic that suits general-purpose installations, firm enough to support moderate loads without bottoming out, yet compliant enough to provide meaningful isolation where operator comfort or equipment sensitivity is a consideration. The 30 x 15 mm geometry and M8 female thread suit a range of industrial, agricultural, and commercial vehicle applications. Typical uses include mounting arrangements on construction equipment, industrial machinery, agricultural equipment, commercial vehicles, and elevators. The buffer may be loaded in compression, shear, or a combination of both, and its rubber-to-metal bond ensures consistent performance through repeated loading cycles. Custom options including stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request. This buffer is available in alternative Shore A hardness grades, 45 Shore A (3015FFB08-45) for greater deflection and lighter-duty isolation, and 70 Shore A (3015FFB08-70) for higher-load, lower-movement applications.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

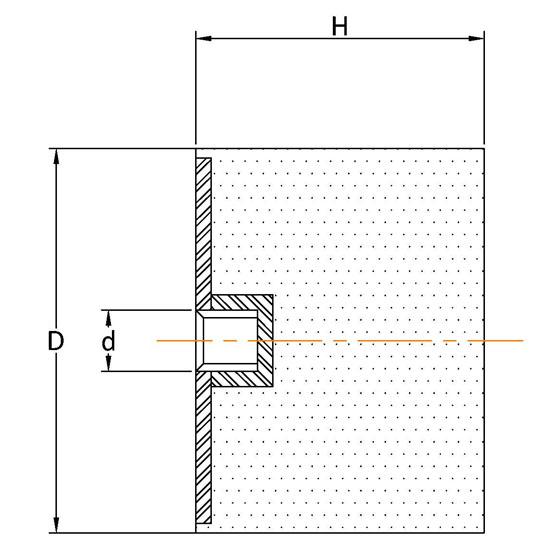

| Rubber Body Dimension (D) | 30mm |
|---|---|
| Height (H) | 15mm |
| Thread Size (V) | M8 |
| Max Load (Kg) | 134.5 |
| Deflection (mm) | 3.75 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Male Flat Buffer - Anti-Vibration, Thread Size M8, Max Load 132Kg - 3015MFB20-60
£10.91
£10.70
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 4025MFB25-45 | 5050MFB25-45 | 3015MFB20-60 | 3025MFB20-70 | 4025FFB08-45 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 25mm | 50mm | 25mm | 25mm | |
| Height | 15mm | ||||
| Size | 40x25mm | 50x50mm | 30x15mm | 30x25mm | 40x25mm |
| Deflection | 6.3 | 12.5 | 3.75 | 6.25 | 6.25 |
| Diameter | 40mm | 50mm | 30mm | 40mm | |
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | 11-25mm | 26-50mm | 11-25mm | 11-25mm | |
| Shore Hardness | 45 | 45 | 70 | 45 | |
| Thread | M10 | M10 | M8 | M8 | M8 |
| Show More | |||||
A. This buffer has a maximum load rating of 134.5 kg and a deflection of 3.75 mm under load.
A. The 3015FFB08-60 measures 30 mm in diameter by 15 mm in height and features an M8 female thread.
A. It is moulded to 60 Shore A, a medium hardness that balances isolation and support — suitable for general-purpose machinery mounting where moderate loads and controlled deflection are both required.
A. The buffer may be loaded in compression, shear, or a combination of both, as is typical of rubber-to-metal bonded flat buffers.
A. Source data identifies construction equipment, industrial machinery, agricultural equipment, commercial vehicles, and elevators as typical applications.
A. Yes — the same geometry is available in 45 Shore A (SKU 3015FFB08-45) for greater deflection and lighter loads, and in 70 Shore A (SKU 3015FFB08-70) for higher-load, lower-movement duties.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
