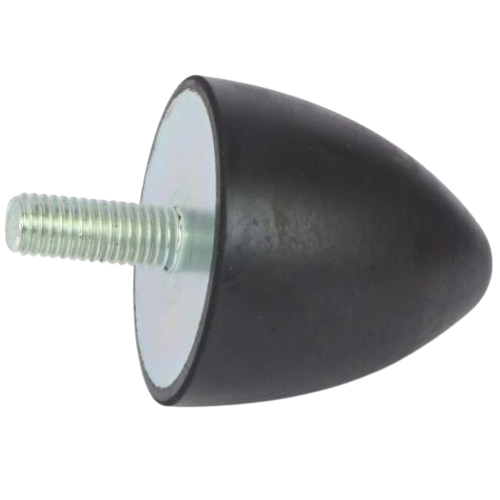

Product Number: 5064MCB35-60
Balancing vibration isolation with structural support, the 5064MCB35-60 is a 60 Shore A conical buffer sized 50 mm diameter by 64 mm height with an M8 x 35 male thread, rated to a maximum load of 185.0 kg and a controlled deflection of 16.0 mm. This medium-hardness grade sits at the centre of the conical buffer range, designed for mainstream general-machinery mounting where moderate loads demand a dependable equilibrium between energy absorption and positional stability. Rubber-to-metal bonded construction gives the 5064MCB35-60 its characteristic durability. The conical geometry works to absorb and dissipate impact energy from external moving components, reducing the shock transmitted to surrounding structures and improving operator comfort. At 60 Shore A, deflection is measured and predictable, making these buffers a practical choice wherever both isolation performance and load-carrying capacity must be met without compromise. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. This buffer serves a wide cross-section of industries: power generation plant, agricultural machinery, commercial and industrial vehicles, and marine applications all benefit from the mid-range hardness grade's ability to handle sustained compression and shear loading in everyday working conditions. Its straightforward male-thread fitment simplifies installation across fabricated frames, chassis rails, and machinery bases. Softer 45 Shore A isolation is available in the 5064MCB35-45, while the firmer 70 Shore A variant for higher-load duties is the 5064MCB35-70.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

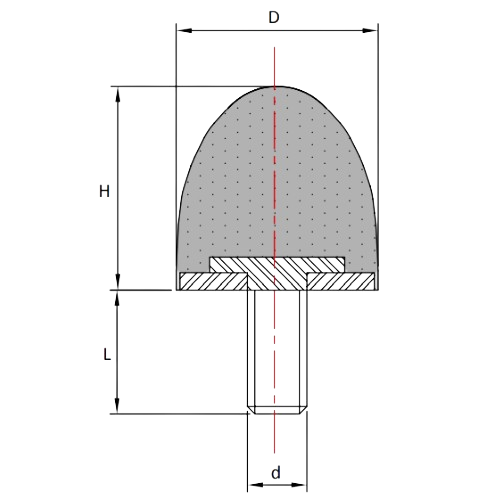

| Rubber Body Dimension (D) | 50mm |
|---|---|
| Height (H) | 64mm |
| Thread Size (V) | M8 |
| Bolt Length (I) | 35mm |
| Max Load (kg) | 185 |
| Deflection (mm) | 16mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M10, Max Load 170Kg - 5050MCB25-60
£14.12
£13.84
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 5050MCB25-60 | 6060MCB37-45 | 4535MCB23-70 | MCB3460*-45 | 7589MCB37-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 60mm | 35mm | 46mm | 89mm | |
| Height | 50mm | ||||
| Size | 50x50mm | 60x60mm | 45x35mm | 70x46mm | 75x89mm |
| Deflection | 12.5mm | 15 | 7.5 | 11.5 | 21.2 |
| Diameter | 60mm | 45mm | 70mm | 75mm | |
| Diameter Range | 51-100mm | 26-50mm | 51-100mm | 51-100mm | |
| Length Range | 51-100mm | 26-50mm | 26-50mm | 51-100mm | |
| Shore Hardness | 45 | 70 | 45 | 60 | |
| Thread | M10 | M12 | M8 | M12 | M12 |
| Show More | |||||
A. The buffer measures 50 mm diameter by 64 mm height (D x H) with an M8 x 35 male thread (d x L). It is rated to a maximum load of 185.0 kg with a deflection of 16.0 mm.
A. At 60 Shore A, this medium-hardness grade provides a balance between vibration isolation and load-carrying capacity. Softer grades give greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A grade is suited to the broad middle ground of moderate-load general machinery mounting.
A. These mounts may be loaded in shear, compression, or a combination of both, making them adaptable across a range of mounting configurations.
A. Applications include construction equipment, industrial machinery, agricultural equipment, elevators, and commercial vehicles. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. This size is available in 45 Shore A (SKU 5064MCB35-45) for greater deflection and softer isolation, and 70 Shore A (SKU 5064MCB35-70) for higher load-carrying with less movement, in addition to this 60 Shore A medium-grade option.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
