Product Number: 5050MCB25-60

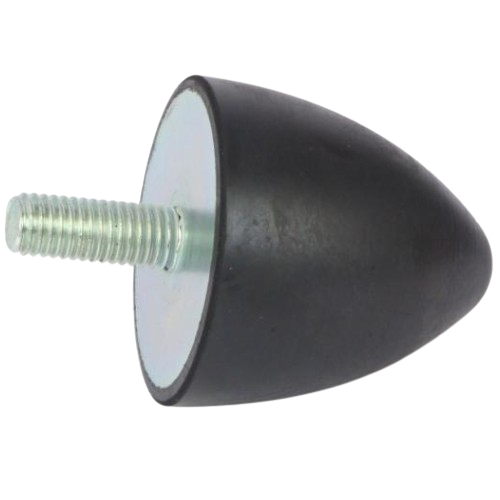

The 5050MCB25-60 is a 50 x 50 mm conical buffer with an M10 x 25 male stud, rated to a maximum load of 170.0 kg and a deflection of 12.5 mm, vulcanised in 60 Shore A rubber for a balanced combination of load-carrying capacity and vibration isolation across the broadest range of general industrial mounting duties. This mid-range hardness grade occupies the practical centre ground of the conical buffer family, delivering meaningful deflection under moderate loads without the compliance of softer grades or the stiffness of firmer alternatives, making it the natural first choice for mainstream machinery mounting where both support and isolation matter equally. Rubber-to-metal bonded construction gives the 5050MCB25-60 its characteristic resilience under repeated loading. The conical geometry allows the mount to be loaded in compression, shear, or a combination of both, while the rubber element absorbs and dissipates impact energy rather than transmitting it to surrounding structures or frames. The M10 x 25 male stud provides straightforward, direct fitment to standard tapped holes, and stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request for more demanding service environments. At 60 Shore A, this buffer is well suited to construction equipment, industrial machinery, commercial vehicles, and agricultural equipment operating at moderate load cycles. The 170.0 kg maximum load and 12.5 mm deflection figure give plant engineers and maintenance teams a clear working envelope for mounting design and replacement selection.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

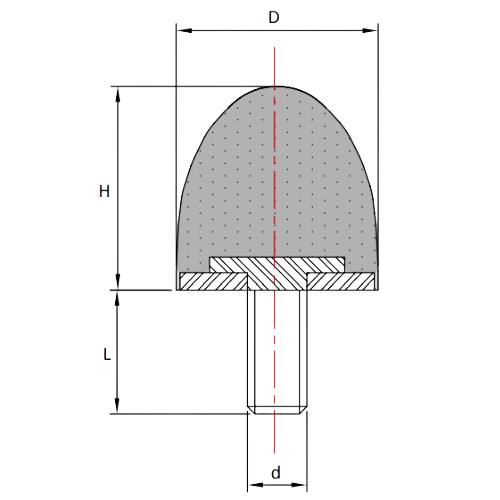

| Rubber Body Dimension (D) | 50mm |
|---|---|
| Height (H) | 50mm |
| Thread Size (V) | M10 |
| Bolt Length (I) | 25mm |
| Max Load (kg) | 170 |
| Deflection (mm) | 12.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 5064MCB35-60 | 5067MCB33-60 | 5068MCB38-60 | MCB3460*-45 | 7058MCB32-45 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 67mm | 68mm | 46mm | 58mm | |
| Height | 64mm | ||||
| Size | 50x64mm | 50x67mm | 50x68mm | 70x46mm | 70x58mm |
| Deflection | 16mm | 16 | 16.2 | 11.5 | 13.7 |
| Diameter | 50mm | 50mm | 70mm | 70mm | |
| Diameter Range | 26-50mm | 26-50mm | 51-100mm | 51-100mm | |
| Length Range | 51-100mm | 51-100mm | 26-50mm | 51-100mm | |
| Shore Hardness | 60 | 60 | 45 | 45 | |
| Thread | M8 | M8 | M10 | M12 | M12 |
| Show More | |||||
A. The buffer measures 50 mm diameter by 50 mm height with an M10 x 25 male stud thread. It is rated to a maximum load of 170.0 kg with a deflection of 12.5 mm.
A. At 60 Shore A, this is the mid-range hardness grade, designed to balance vibration isolation with load-bearing support. It is suited to moderate-load general machinery mounting where neither maximum compliance nor maximum stiffness is required. Softer grades such as the 45 Shore A variant offer greater deflection and better isolation at lower loads, while the 70 Shore A grade carries higher loads with reduced movement.
A. The buffer is suited to construction equipment, industrial machinery, agricultural equipment, commercial vehicles, and applications requiring elastic element contact with moving components. It also serves secondary suspension duties on industrial vehicles.
A. Conical buffers of this type may be loaded in compression, shear, or a combination of both, depending on the mounting arrangement and direction of applied forces.
A. The 5050MCB25-60 uses rubber-to-metal bonded construction, permanently uniting the rubber element with the metal stud to provide reliable performance under repeated loading and energy absorption cycles.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. Yes. The same 50 x 50 mm M10 x 25 geometry is available in 45 Shore A (5050MCB25-45) and 70 Shore A (5050MCB25-70). Further conical buffer variants in different sizes include 100100MCB31, 100120MCB31, 10095MCB31, 1010MCB12, 11877MCB41, and 2015MCB10.
