Product Number: 2024MCB18-60
Variations

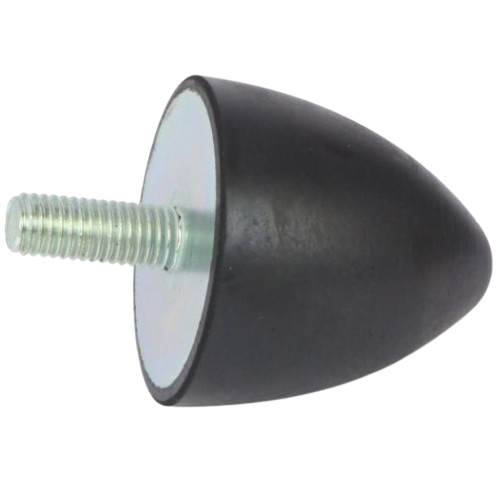

Compact enough for lighter installations yet capable of meaningful load absorption, this 20 x 24 mm M6 conical buffer at 60 Shore A occupies the productive middle ground of the range, balancing vibration isolation against structural support where a softer grade would yield too readily and a firmer grade would transmit too much energy. The M6 x 18 mm male stud makes direct installation straightforward on compact machinery platforms where space and thread size are the governing constraints. At 60 Shore A, the rubber delivers a measured deflection of 6.25 mm at maximum load, giving the mount a controlled compliance that suits installations requiring predictable movement without excessive travel. The rated maximum load of 13.8 kg reflects its position as the smallest body in the conical buffer range, making it best matched to light machinery, sensitive instrumentation mounting, and lower-load vibration control tasks where a larger body would be disproportionate. Rubber-to-metal bonded construction maintains integrity under combined shear and compression loading. Conical buffers of this type serve as both vibration mounts and bump stops, cushioning machinery against impact shocks from external moving components and absorbing energy in primary or secondary suspension roles on industrial vehicles and equipment. Relevant application areas include agricultural equipment, construction plant, commercial vehicles, power generation, marine and railway environments. This buffer is particularly suited to compact sub-assemblies and panel-mounted equipment within those sectors where the 20 x 24 mm body profile is the practical choice.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

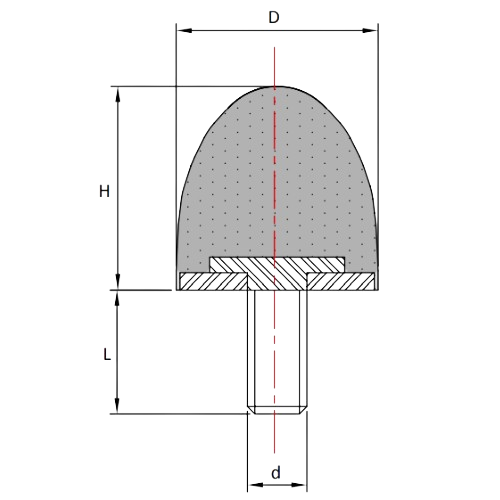

| Rubber Body Dimension (D) | 20mm |
|---|---|
| Height (H) | 24mm |
| Thread Size (V) | M6 |
| Bolt Length (I) | 18mm |
| Max Load (kg) | na |
| Deflection (mm) | namm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£36.02
£35.31
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB30-60 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 30mm | 23 | 23 | 23 | 30 |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The buffer body measures 20 mm diameter by 24 mm height, with an M6 x 18 mm male stud. Maximum rated load is 13.8 kg and maximum deflection is 6.25 mm.
A. At 60 Shore A, this buffer sits in the medium hardness range, providing a balance between vibration isolation and load-bearing support. It offers 6.25 mm of controlled deflection at its 13.8 kg rated load, making it suitable where a softer grade would deflect excessively and a firmer grade would isolate too little.
A. This buffer is designed for vibration and shock absorption in agricultural equipment, construction plant, commercial vehicles, industrial machinery, power generation, marine, and railway applications. Its compact 20 x 24 mm body is well matched to light sub-assemblies and panel-mounted equipment within these sectors.
A. Yes. Conical buffers of this type function both as vibration isolation mounts and as bump stops that cushion machinery against impact shocks from external moving components. They are also used in primary and secondary suspension roles on industrial vehicles.
A. Yes. The same body geometry is available in 45 Shore A (SKU 2024MCB18-45) for greater deflection and softer isolation, and 70 Shore A (SKU 2024MCB18-70) for higher load capacity and reduced deflection.
A. Yes. Stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request, in addition to custom and additional sizes.
