Product Number: 1010MCB12-60
Variations

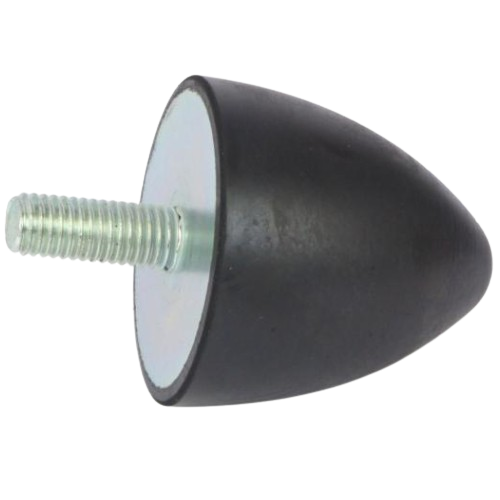

Balancing vibration isolation with steady mechanical support, the 1010MCB12-60 is a 10 x 10 mm conical rubber buffer rated to a maximum load of 4.6 kg with a controlled deflection of 2.25 mm, threaded M5 x 12 mm, and moulded to a 60 Shore A hardness, a medium grade engineered for the broad middle ground of machinery mounting where neither extreme softness nor high rigidity is required. Rubber-to-metal bonded construction gives the 1010MCB12-60 reliable durability across load cycles. The 60 Shore A compound sits at the practical midpoint of the conical buffer range: it delivers more load-carrying capacity than softer grades whilst retaining meaningful deflection, making it well suited to installations where vibration attenuation and structural support must coexist. Mounts of this type may be loaded in compression, shear, or a combination of both, and the conical geometry contributes to progressive load response as deflection increases. At 10 x 10 mm, this is the smallest buffer in the conical range and is intended for light-duty, compact or sensitive installations. Typical applications drawing on the medium 60 Shore A characteristic include industrial machinery panels and housings, agricultural equipment cab or instrument mountings, commercial-vehicle interior fittings, and general-purpose component isolation on power-generation or marine auxiliary equipment. The buffer also finds use as an elastic contact element where a secondary component bears directly against a surface. Across all these duties, the medium grade improves machinery lifespan, protects surrounding structures, and contributes to operator comfort.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

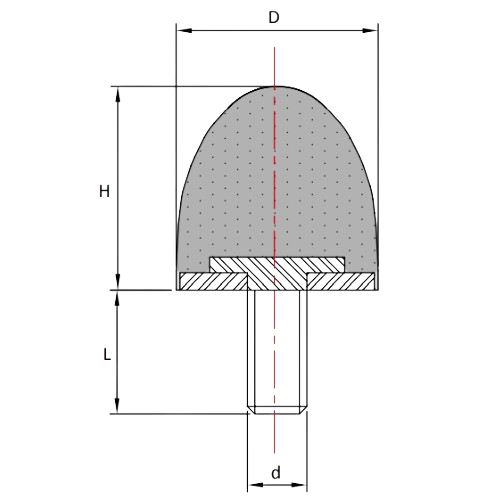

| Rubber Body Dimension (D) | 10mm |
|---|---|
| Height (H) | 10mm |
| Thread Size (V) | M5 |
| Bolt Length (I) | 12mm |
| Max Load (kg) | na |
| Deflection (mm) | namm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£36.02
£35.31
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB30-60 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 | 100120MCB31-45 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 100mm | 100mm | 121mm | |
| Height | 120mm | ||||
| Size | 100x100mm | 100x100mm | 100x100mm | 105x121mm | |
| Deflection | 30mm | 23 | 23 | 23 | 30 |
| Diameter | 100mm | 100mm | 100mm | 105mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The 1010MCB12-60 measures 10 mm diameter by 10 mm height, carries an M5 x 12 mm threaded stud, has a maximum load rating of 4.6 kg, a deflection of 2.25 mm, and is moulded to 60 Shore A hardness.
A. A 60 Shore A grade sits at the medium point of the hardness scale. It provides a balance of vibration isolation and load-carrying capacity, offering more support than softer grades whilst retaining sufficient deflection to attenuate vibration effectively — making it a general-purpose choice for a wide range of machinery mounting duties.
A. The 60 Shore A medium grade is well suited to industrial machinery panels and housings, agricultural equipment cab or instrument mountings, commercial-vehicle interior fittings, and general-purpose component isolation on power-generation or marine auxiliary equipment. It can also function as an elastic contact element in direct contact with a secondary surface.
A. At 10 x 10 mm, the 1010MCB12-60 is the smallest buffer in the conical range and is intended for light-duty, compact or sensitive installations operating at lower loads.
A. The same 10 x 10 mm M5 footprint is offered in 45 Shore A (1010MCB12-45) for greater deflection and isolation, and 70 Shore A (1010MCB12-70) for higher load capacity with less movement. Larger conical buffers in the family include the 100100MCB31, 100120MCB31, 10095MCB31, 11877MCB41, 2015MCB10, and 2024MCB18.
A. The buffer uses rubber-to-metal bonded construction, bonding the rubber element directly to the metal stud insert. This design provides durability across repeated load cycles and ensures the rubber and metal components remain securely joined under both compression and shear loading.
A. Yes — stainless steel metal parts and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
