Product Number: 9580MCB45-55

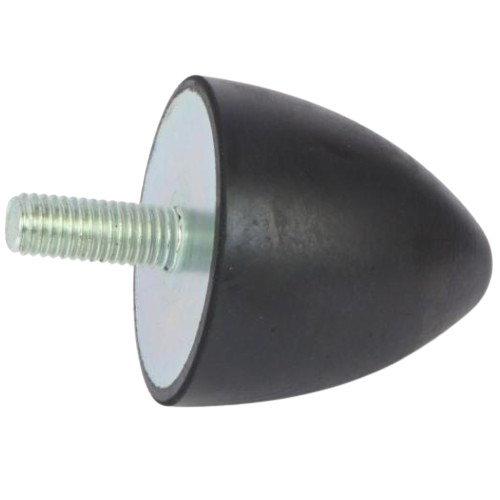

The 9580MCB45-55 is a 95 x 80 mm conical buffer rated to 594 kg in 55 Shore rubber. Typical duties include vehicle primary and secondary suspension and bump stops on plant and machinery.
Its conical (parabolic) form gives progressive stiffness: under extreme deformation the shock energy is absorbed gradually, protecting the mounted equipment. Fixing is by an M16 fixing with a 45 mm stud; the rubber body measures 95 mm across and 80 mm high. Rated load is 594 kg at 20 mm deflection. Buffers of this kind protect equipment and structures at the point of impact - typical duties include bump stops on vehicles, plant and industrial machinery. The family serves as bump stops and impact cushions across vehicles, generating sets and industrial machinery.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

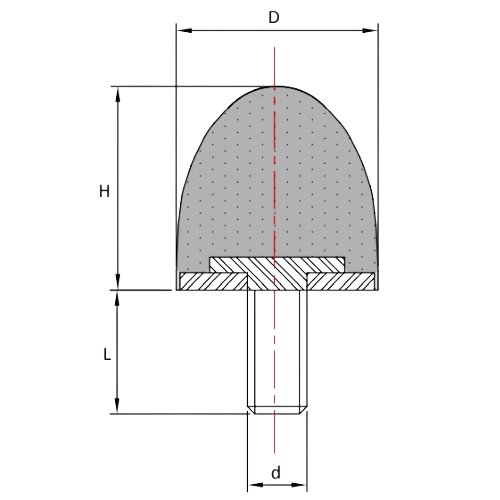

| Rubber Body Dimension (D) | 95mm |
|---|---|
| Height (H) | 80mm |
| Thread Size (V) | M16 |
| Bolt Length (I) | 45mm |
| Max Load (kg) | 594 |
| Deflection (mm) | 20mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 9580MCB45-60 | 100100MCB31-70 | 10095MCB31-70 | 100120MCB31-70 | 7058MCB32-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 80mm | 100mm | 95mm | 121mm | 58mm |
| Size | 95x80mm | 100x100mm | 105x95mm | 105x121mm | 70x58mm |
| Deflection | 20 | 23 | 24 | 30 | 13.7 |
| Diameter | 95mm | 100mm | 105mm | 105mm | 70mm |
| Diameter Range | 51-100mm | 51-100mm | 101-200mm | 101-200mm | 51-100mm |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | 51-100mm |
| Shore Hardness | 60 | 70 | 70 | 70 | 70 |
| Thread | M16 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. Fit is by dimensions - a 95 mm body, 80 mm height and M16 fixing. Match those against your application, search PartsForMachines by the AV part number, or WhatsApp our team to check before ordering.
A. 594 kg maximum at 20 mm deflection.
A. The conical form provides progressive stiffness, so under extreme deformation the shock energy is absorbed gradually and the equipment is protected.
