Product Number: 9580MCB45-60
Variations

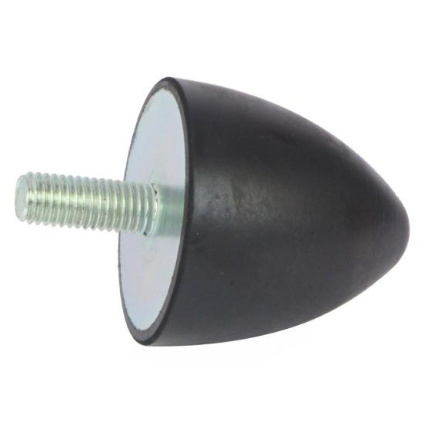

Engineered to handle the heavier end of the conical buffer range, the 9580MCB45-60 is a 95 x 80 mm rubber-to-metal bonded conical buffer with an M16 x 45 mm male stud, rated to a maximum load of 594.0 kg and a controlled deflection of 20.0 mm. At 60 Shore A, this medium-grade formulation balances vibration isolation and structural support across the broad middle ground of industrial machinery mounting, making it a practical choice where neither maximum compliance nor maximum stiffness alone will suffice. Rubber-to-metal bonded construction gives the 9580MCB45-60 a reliable, maintenance-free service life. The conical geometry allows the mount to absorb and dissipate energy whether loaded in compression, shear, or a combination of both. At 60 Shore A, deflection is kept to a measured 20.0 mm under rated load, providing a mount that accommodates moderate shock inputs while maintaining positional stability under sustained or variable operating forces. With a 594.0 kg maximum load rating, this is the largest buffer in the conical range and is suited to heavier machinery installations, high-load suspension points, and shock-duty applications in demanding environments. Source industries include construction and off-highway equipment, agricultural machinery, power generation, marine, railway and mass transit, automotive, and military and defence applications. The conical buffer format also lends itself to primary and secondary suspension duties on industrial vehicles and elevators, where consistent energy absorption across load cycles is required.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Body diameter D (mm) | 95 |
| Overall height H (mm) | 80 |
| Stud thread d | M16 |
| Stud length L (mm) | 45 |
| Max load (kg) | 594 |
| Deflection (mm) | 20 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M16, Max Load 594Kg - 9580MCB45-55
£84.23
£82.58
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100MCB31-70 | 10095MCB31-70 | 7058MCB32-70 | 100120MCB31-70 | 9580MCB45-55 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 100mm | 95mm | 58mm | 121mm | |
| Height | 80mm | ||||
| Size | 100x100mm | 105x95mm | 70x58mm | 105x121mm | |
| Deflection | 23 | 24 | 13.7 | 30 | 20mm |
| Diameter | 100mm | 105mm | 70mm | 105mm | |
| Diameter Range | 51-100mm | 101-200mm | 51-100mm | 101-200mm | |
| Length Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | |
| Shore Hardness | 70 | 70 | 70 | 70 | |
| Thread | M12 | M12 | M12 | M12 | M16 |
| Show More | |||||
A. The 9580MCB45-60 is rated to a maximum load of 594.0 kg, making it the highest-capacity buffer in the 95 x 80 mm conical range.
A. At its 594.0 kg maximum load rating, the 9580MCB45-60 provides a controlled deflection of 20.0 mm, reflecting its 60 Shore A medium hardness formulation.
A. The outer body measures 95 mm diameter by 80 mm height, and the male fixing stud is M16 thread with a 45 mm length. These dimensions determine fitment to the mounting structure.
A. Source applications include construction and off-highway equipment, agricultural machinery, industrial machinery, power generation, marine, railway and mass transit, automotive, and military and defence. The conical format is also used for primary and secondary suspension of industrial vehicles and in elevator installations.
A. The 60 Shore A grade balances vibration isolation and load support. Within the 95 x 80 mm geometry, the 45 Shore A grade (SKU: 9580MCB45-45) provides greater deflection and softer isolation at lower loads, while the 70 Shore A grade (SKU: 9580MCB45-70) carries higher load with less movement.
A. The rubber-to-metal bonded construction allows the mount to be loaded in compression, shear, or a combination of both, depending on the installation requirements.
A. Yes — stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional or custom sizes are available on request.
