Product Number: 7589MCB37-70
Variations

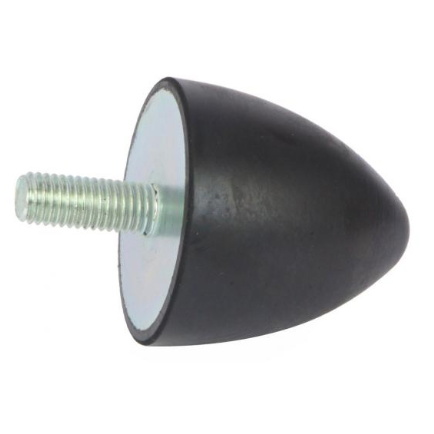

Rated at a maximum load of 279.8 kg with a controlled deflection of just 21.2 mm, the 7589MCB37-70 is the firm-grade conical buffer in the 75 x 89 mm family, built to hold heavy or shock-loaded assemblies firmly in place where movement must be minimised. The M12 x 37 mm threaded stud provides a secure, direct-mount fixing for straightforward installation across many industrial and mobile equipment. Constructed from rubber bonded to metal, this conical buffer absorbs and dissipates impact energy rather than transmitting it to surrounding structures. At 70 Shore A, the rubber compound carries high loads with the least deflection in this geometry's range, making it the natural choice where heavier forces or repeated shock loads demand a resilient, low-movement response. The result is improved machinery lifespan, protection for adjacent structures, and enhanced operator comfort under demanding duty cycles. The 7589MCB37-70 is suited to primary and secondary suspension duties on industrial vehicles, impact cushioning on construction and off-highway equipment, shock management on agricultural machinery, and restraint applications in power generation, marine, railway and mass transit, or military and defence environments. Mounts in this range may be loaded in shear, compression, or a combination of both. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 75 |
| Overall height H (mm) | 89 |
| Stud thread d | M12 |
| Stud length L (mm) | 37 |
| Max load (kg) | 279.8 |
| Deflection (mm) | 21.2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 286Kg - 7058MCB30-60
£15.46
£15.16
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 6060MCB37-60 | MCB3460*-60 | 5061MCB28-70 | 5058MCB20-70 | 7058MCB30-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 60mm | 46mm | 61mm | 58mm | |
| Height | 58mm | ||||
| Size | 60x60mm | 70x46mm | 50x61mm | 50x58mm | |
| Deflection | 15 | 11.5 | 14.5 | 15 | 15mm |
| Diameter | 60mm | 70mm | 50mm | 50mm | |
| Diameter Range | 51-100mm | 51-100mm | 26-50mm | 26-50mm | |
| Length Range | 51-100mm | 26-50mm | 51-100mm | 51-100mm | |
| Shore Hardness | 60 | 60 | 70 | 70 | |
| Thread | M12 | M12 | M8 | M8 | M12 |
| Show More | |||||
A. This buffer has a maximum load rating of 279.8 kg and a deflection of 21.2 mm.
A. 75 x 89 mm is the outer diameter by height of the conical buffer body. M12 x 37 refers to the threaded stud — M12 thread diameter with a 37 mm stud length.
A. At 70 Shore A, this is the firm grade in the family. It carries higher loads with less movement than the 45 or 60 Shore A variants, making it suited to heavier, shock-loaded, or restraint applications where minimal deflection is required.
A. The buffer is suited to industrial vehicles (primary and secondary suspension), construction and off-highway equipment, agricultural machinery, power generation, marine, railway and mass transit, and military and defence applications. Mounts may be loaded in shear, compression, or a combination of both.
A. The rubber-to-metal bonded construction absorbs and dissipates impact energy from external moving components rather than transmitting it, helping to extend machinery lifespan, protect surrounding structures, and improve operator comfort.
A. Yes — stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional or custom sizes are available on request.
A. The 75 x 89 mm / M12 body is also available in 45 Shore A (7589MCB37-45) and 60 Shore A (7589MCB37-60). Related geometries include 100100MCB31, 100120MCB31, 10095MCB31, 1010MCB12, 11877MCB41, and 2015MCB10.
