Product Number: 6060MCB37-70
Variations

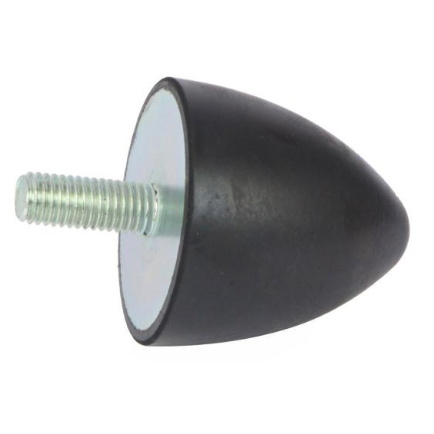

Designed to carry the heaviest loads in the 60 x 60 mm conical buffer range, the 6060MCB37-70 is a 70 Shore A firm-grade rubber buffer rated to a maximum load of 395 kg with a controlled deflection of 15 mm. Where high-load capacity and minimal movement under stress are priorities, this grade delivers the restraint and energy dissipation needed to keep machinery and structures stable under sustained or sudden loading. Constructed with rubber-to-metal bonded technology, the 6060MCB37-70 absorbs and dissipates impact energy through its conical form while resisting excessive deflection at load. The firm 70 Shore A compound is selected specifically for applications that demand the component hold its position under shock and impact rather than yield, protecting surrounding structures and extending machinery service life. The M12 x 37 mm male stud allows straightforward installation into prepared assemblies. At 395 kg maximum load and 15 mm deflection, this buffer is suited to primary and secondary suspension duties on industrial vehicles, as well as high-load bump-stop applications on construction equipment, agricultural machinery, and commercial vehicles where the buffer must resist significant dynamic force. It also serves power generation, marine, and railway environments where shock restraint under heavy or intermittent impact loading is required. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for specialist environments. The 60 x 60 mm conical buffer range is also available in 45 Shore A (6060MCB37-45) and 60 Shore A (6060MCB37-60) grades for applications requiring greater deflection or lighter-duty isolation.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 60 |
| Overall height H (mm) | 60 |
| Stud thread d | M12 |
| Stud length L (mm) | 37 |
| Max load (kg) | 395 |
| Deflection (mm) | 15 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 6040MCB62-70 | 9580MCB45-45 | 100120MCB31-60 | 100120MCB30-60 | 6060MCB37-45 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 40mm | 80mm | 121mm | 60mm | |
| Height | 120mm | ||||
| Size | 60x40mm | 95x80mm | 105x121mm | 60x60mm | |
| Deflection | 10 | 20 | 30 | 30mm | 15 |
| Diameter | 60mm | 95mm | 105mm | 60mm | |
| Diameter Range | 51-100mm | 51-100mm | 101-200mm | 51-100mm | |
| Length Range | 26-50mm | 51-100mm | 101-200mm | 51-100mm | |
| Shore Hardness | 70 | 45 | 60 | 45 | |
| Thread | M14 | M16 | M12 | M12 | M12 |
| Show More | |||||
A. The 6060MCB37-70 has a maximum load capacity of 395 kg and a deflection of 15 mm.
A. The buffer body measures 60 mm diameter by 60 mm height (D x H), with an M12 x 37 mm male stud (d x L).
A. This buffer is rated at 70 Shore A, the firmest grade in this geometry. A harder compound carries higher loads with less movement under stress, making it suited to shock and impact duty, heavy-load restraint, and applications where minimal deflection is required rather than maximum isolation.
A. It is suited to primary and secondary suspension on industrial vehicles, bump-stop and anti-impact duties on construction equipment, agricultural machinery, commercial vehicles, power generation plant, marine installations, and railway and mass transit applications where shock restraint under heavy loading is required.
A. The 60 x 60 mm conical buffer range includes 45 Shore A (6060MCB37-45) and 60 Shore A (6060MCB37-60) grades. Softer grades give greater deflection and better vibration isolation at lower loads; the 70 Shore A grade carries the highest load with the least movement and is chosen where firm restraint under heavy or shock loading is the priority.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
