Product Number: PR262222-45

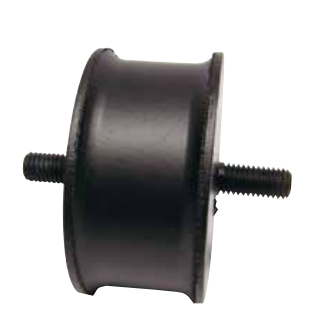

Where isolation matters most, the 45 Shore A profiled bobbin mount is the grade to reach for. At 26mm outer diameter, 22mm body height and M8 male-male thread configuration (M8x10 upper stud, M8x18 lower stud, M8 female centre), this soft-grade rubber-to-metal bonded mount is rated to a maximum load of 7 kg per mounting, making it the lightest-duty member of the profiled bobbin range and the natural choice wherever sensitive equipment or low-frequency vibration calls for maximum movement under load rather than stiff restraint. The 45 Shore A rubber compound delivers the greatest deflection of any hardness grade in this geometry. That compliance translates directly into superior isolation efficiency at lower load levels, absorbing vibration energy before it reaches the host structure. Rubber-to-metal bonded construction ensures the elastomer and metalwork act as a single, durable unit. The mount is usable in shear, compression, or a combination of both, giving designers flexibility in orientation and installation arrangement. Stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request for specialised environments. Typical applications for this soft, compact mount include instruments and sensitive measurement equipment, light-duty air-conditioning units, small generator sets, and automotive or industrial installations where the priority is protecting delicate components from vibration rather than bearing heavy shock loads. The profiled bobbin geometry is a recognised low-cost anti-vibration solution suited to a wide cross-section of industries, from agriculture and marine to power generation and automotive.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Diameter / thread d1 (mm) | 26 |
| Diameter / thread d2 (mm) | 22 |
| Overall height H (mm) | 22 |
| Type d1 | M8x10 |
| 1 d1 | M8x18 |
| 2 d2 | M8 |
| Type d2 | M8 |
| 3 d2 | M8 |
| Max load (kg) | 7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1510MM10-45 | 2020MM18-45 | 2025FF06-45 | 1525MM10-70 | 2025MM18-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 10mm | 20mm | 25mm | 25mm | 25mm |
| Size | 15x10mm | 20x20mm | 20x25mm | 15x25mm | 20x25mm |
| Deflection | 0.8 | 1.6 | 2.2 | 2 | 2.2 |
| Diameter | 15mm | 20mm | 20mm | 15mm | 20mm |
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Length Range | Up to 10mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Shore Hardness | 45 | 45 | 45 | 70 | 45 |
| Thread | M4 | M6 | M6 | M4 | M6 |
| Show More | |||||
A. The PR262222-45 is rated to a maximum load of 7 kg per mounting, making it suited to lighter-duty and sensitive equipment applications.
A. The mount has an outer diameter (D1) of 26 mm, a secondary diameter (D2) of 22 mm, and a body height (H) of 22 mm. The upper stud is M8x10, the lower stud is M8x18, and the centre thread is M8 female.
A. The 45 Shore A compound is the softest available in this geometry and provides the greatest deflection under load. This delivers superior vibration isolation efficiency at lower load levels and is the correct choice where protecting sensitive equipment or achieving maximum absorption of low-frequency vibration is the priority. Firmer grades (60 Shore A or 70 Shore A) carry higher loads with less movement but offer less isolation compliance.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation to suit the application.
A. This mount is appropriate for instruments and sensitive equipment, light-duty air-conditioning units, small generator sets, and automotive or industrial machinery where vibration isolation is the primary requirement. Industries served by the profiled bobbin family include agriculture, marine, power generation, automotive, construction and off-highway, railway and mass transit, and military and defence.
A. Yes. The same 26x22x22 mm body is available in 60 Shore A (PR262222-60) and 70 Shore A (PR262222-70) for higher load duties. The range also extends to larger profiles including PR1009555, PR1009575, PR403528, PR464025, and PR757040.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
