Product Number: PR1009555-70

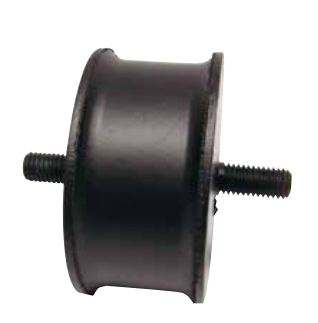

Engineered to hold firm under heavy loads and absorb shock without excess movement, PR1009555-70 is a 100mm profiled male-male bobbin mount rated to a maximum load of 690 kg at 70 Shore A hardness, the highest load capacity in the 100mm profiled bobbin range. With outer diameter D1 of 100mm, flange diameter D2 of 95mm and an overall height of 55mm, and M16x41 male threads on both faces, this mount is sized and hardened for demanding duty where structural security and minimal deflection are as important as vibration control. At 70 Shore A, the rubber compound sits at the firmer end of the hardness scale, which means it carries substantially higher loads with less movement than softer grades. Rubber-to-metal bonded construction locks the elastomer to the metal inserts, resisting pull-out under shock or sustained compressive force. The mount may be loaded in shear, compression, or a combination of both, giving engineers the flexibility to orient it as the installation demands. Stainless steel hardware and oil-resistant or high-temperature rubber variants are available on request for corrosive or thermally demanding environments. This grade is particularly well matched to diesel engines, heavy generator sets, industrial machinery subject to impact or surge loads, and exhaust mountings where the assembly must be restrained as well as isolated. It is equally suited to construction and off-highway equipment, agricultural machinery, marine installations, and power-generation plant, anywhere the primary requirement is load capacity and positional control rather than maximum deflection.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Diameter / thread d1 (mm) | 100 |
| Diameter / thread d2 (mm) | 95 |
| Overall height H (mm) | 55 |
| Type d1 | M16x41 |
| 1 d1 | M16x41 |
| 2 d2 | M16 |
| Type d2 | M16 |
| 3 d2 | M16 |
| Max load (kg) | 690 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10055MM44-70 | 10040FF16-60 | 10060FF16-70 | 8030MM35-70 | 10040MM44-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 55mm | 40mm | 60mm | 30mm | 40mm |
| Size | 100x55mm | 100x40mm | 100x60mm | 80x30mm | 100x40mm |
| Deflection | 4.7 | 3.2 | 5.2 | 2.4 | 3.2 |
| Diameter | 100mm | 100mm | 100mm | 80mm | 100mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 51-100mm | 26-50mm | 51-100mm | 26-50mm | 26-50mm |
| Shore Hardness | 70 | 60 | 70 | 70 | 60 |
| Thread | M16 | M16 | M16 | M14 | M16 |
| Show More | |||||
A. The maximum load rating for this mount is 690 kg, making it the highest-capacity option in the 100mm profiled bobbin range at 70 Shore A hardness.
A. The mount has an outer diameter (D1) of 100mm, a flange diameter (D2) of 95mm, and an overall height (H) of 55mm. Both male threads are M16x41.
A. Harder grades carry higher loads with less movement. At 70 Shore A, this mount prioritises load capacity, positional restraint and resistance to shock or surge forces over maximum vibration deflection — ideal where the mounted assembly must be held firmly.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation.
A. Source applications include diesel engines, heavy generator sets, industrial machinery subject to impact loads, exhaust mountings, construction and off-highway equipment, agricultural machinery, marine installations, and power-generation plant.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubber compounds are available on request for installations in corrosive or high-temperature environments.
A. Yes — the 100mm profiled geometry is also available at 45 Shore A (PR1009555-45) and 60 Shore A (PR1009555-60). Additional sizes and configurations include PR1009575, PR262222, PR403528, PR464025 and PR757040.
