Product Number: 10075MF44-70
Variations

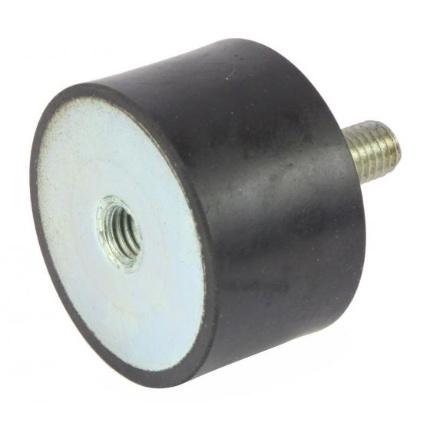

Rated at a maximum load of 540 kg with a controlled deflection of just 6.7 mm, this 100 x 75 mm male-female bobbin mount (SKU 10075MF44-70) is the heaviest-duty configuration in the 100 x 75 mm range, engineered for applications where mass, shock, and impact demand firm, predictable restraint rather than high compliance. The male stud thread is M16 x 44 mm and the female thread is M16, providing secure and direct installation into structural frameworks or baseplate assemblies. At 70 Shore A, this is the firmest hardness grade available in this geometry. As the family source confirms, harder grades carry higher loads with less movement, a characteristic that defines the engineering purpose of this mount. Rubber-to-metal bonded construction ensures the elastomer and steel components act as a single structural unit, resisting the lateral and axial forces generated by heavy plant. The mount may be loaded in shear, compression, or a combination of both, offering layout flexibility without compromising performance under sustained or intermittent shock loading. Typical service environments include diesel engines and generator sets operating under high torque, industrial machinery and equipment subject to cyclical impact, exhaust mountings on heavy commercial vehicles, and construction and off-highway plant where the mount must hold position under sustained vibration. Power generation, marine, agricultural, and military and defence applications also fall within the published scope. By limiting excessive movement at the mount point, this grade helps protect surrounding structures and contributes to extended machinery service life.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 100 |
| Overall height H (mm) | 75 |
| Stud thread d1 | M16 |
| Stud length L (mm) | 44 |
| Diameter / thread d2 (mm) | M16 |
| Max load (kg) | 540 |
| Deflection (mm) | 6.7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10050MF44-60 | 10050FF16-60 | 10050MM44-60 | 10075MM44-70 | PR1009575-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 50mm | 50mm | 50mm | 75mm | |
| Size | 100x50mm | 100x50mm | 100x50mm | 100x75mm | 100mm |
| Deflection | 4.2 | 4.2 | 4.2 | 6.7 | |
| Diameter | 100mm | 100mm | 100mm | 100mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | |
| Shore Hardness | 60 | 60 | 60 | 70 | 70 |
| Size Range | 51-100mm | ||||
| Thread | M16 | M16 | M16 | M16 | M16 |
| Show More | |||||
A. The 10075MF44-70 is rated to a maximum load of 540 kg per mounting, making it the highest-load configuration in the 100 x 75 mm male-female range.
A. The published deflection figure for this mount is 6.7 mm. The 70 Shore A hardness grade is the firmest available in this geometry, carrying the highest load with the least movement.
A. The male stud is M16 with a stud length of 44 mm (d1 x L: M16 x 44); the female thread is also M16 (d2: M16). Overall dimensions are 100 mm diameter by 75 mm height.
A. The mount may be loaded in shear, compression, or a combination of both, giving installation flexibility across a range of mounting orientations.
A. Published applications include diesel engines, generator sets, industrial machinery and equipment, exhaust mountings, air-conditioning units, and instruments. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. The 100 x 75 mm male-female format is also available at 45 Shore A (10075MF44-45) and 60 Shore A (10075MF44-60). Related geometries include the 100 x 100 mm (100100MF44), 100 x 50 mm (10050MF44), 100 x 55 mm (10055MF44), 100 x 60 mm (10060MF44), 100 x 8 mm (1008MF10), and 100 x 10 mm (1010MF06).
A. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. Contact us with your application requirements for further details.
