Product Number: 10055FF16-45
Variations

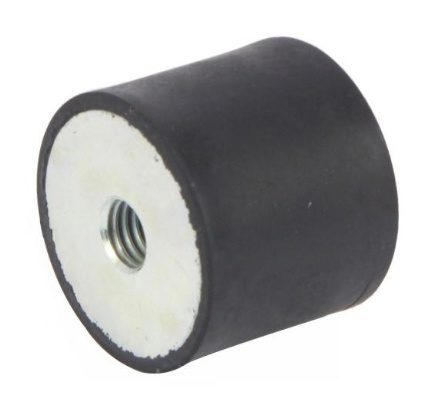

Rated to 280 kg with a 4.7 mm deflection figure, the 100 x 55 mm female-female bobbin mount 10055FF16-45 occupies the largest position in the 100 mm diameter family and is specified in 45 Shore A rubber, the softest grade available in this geometry. Making it the natural choice where maximum vibration attenuation and generous movement under load take priority over stiffness or high-deflection restraint. At this hardness, the rubber delivers its greatest isolation efficiency at lower excitation frequencies, absorbing transmitted energy before it reaches supporting structures or operator environments. Rubber-to-metal bonded construction bonds the 45 Shore A elastomer directly to the steel inserts, creating a mount that can be loaded in shear, compression, or a combination of both without relying on mechanical clamping alone. Both threaded bores are M16, providing a symmetrical female-female fixing arrangement suited to through-bolt or stud installation. The soft grade is well-suited to instruments, sensitive electronic enclosures, generator sets operating under light loading, and air-conditioning units where structure-borne noise transmission must be minimised. The 100 mm diameter and 55 mm height place this mount at the upper end of the standard bobbin range in terms of footprint, making it appropriate for larger equipment housings and fabricated frames where a proportionally sized isolator is needed to maintain correct alignment. Applications also extend to exhaust mountings, diesel engines in stationary plant, and general industrial machinery and equipment across construction and off-highway, agricultural, power generation, marine, and automotive sectors.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Body diameter D (mm) | 100 |
| Overall height H (mm) | 55 |
| Fixing thread / bolt size d | M16 |
| Max load (kg) | 280 |
| Deflection (mm) | 4.7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 6036MF37-70 | 6036MF25-70 | 6030MF25-70 | 7540MM37-60 | 7550FF12-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 36mm | 36mm | 30mm | 40mm | |
| Height | 50mm | ||||
| Size | 60x36mm | 60x36mm | 60x30mm | 75x40mm | 75x50mm |
| Deflection | 3.1 | 3.1 | 2.5 | 3.4 | 4.4 |
| Diameter | 60mm | 60mm | 60mm | 75mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Shore Hardness | 70 | 70 | 70 | 60 | |
| Thread | M12 | M10 | M10 | M12 | M12 |
| Show More | |||||
A. This mount is rated to a maximum load of 280 kg with a deflection of 4.7 mm at that load. These figures apply specifically to the 100 x 55 mm, M16, 45 Shore A variant.
A. Shore A 45 is the softest grade available in this geometry. Softer grades provide greater deflection under load and better vibration isolation, particularly at lower excitation frequencies. This makes the 45 Shore A grade most appropriate where isolation efficiency is the primary requirement rather than stiffness or load restraint.
A. Typical applications include air-conditioning units, generator sets, diesel engines in stationary plant, exhaust mountings, instruments, sensitive electronic enclosures, and general industrial machinery and equipment. The soft 45 Shore A grade is especially well-suited to lighter or vibration-sensitive installations where structure-borne noise must be minimised.
A. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation and installation design.
A. Both bores are M16, providing a symmetrical female-female configuration suitable for through-bolt or stud installation on either face.
A. Yes. The 100 x 55 mm M16 female-female geometry is also available in 60 Shore A (10055FF16-60) and 70 Shore A (10055FF16-70). Related M16 female-female bobbins include 100 x 100 mm (100100FF16), and heights of 40 mm (10040FF16), 45 mm (10045FF16), 50 mm (10050FF16), 60 mm (10060FF16), as well as the 105 x 75 mm size (10575FF16).
A. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
