Product Number: 3020MM20-60

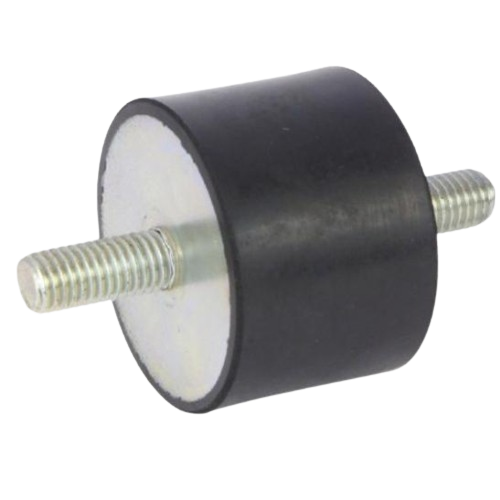

Balancing isolation performance with structural support, the 3020MM20-60 is a male-male bobbin anti-vibration mount measuring 30 mm diameter by 20 mm height, fitted with M8 x 20 mm threaded studs on both faces and vulcanised to a 60 Shore A medium-hardness rubber element. Its rated maximum load of 38.0 kg and deflection of 1.6 mm place it squarely in the mid-range of this bobbin family, suited to lighter, compact or vibration-sensitive installations where an even trade-off between controlled movement and steady support is required. The rubber-to-metal bonded construction allows the mount to operate in shear, compression or a combination of both loading modes, giving designers flexibility in how loads are directed through the mounting point. The medium Shore A rating is intentional: softer grades yield greater deflection and superior isolation under lower loads, harder grades carry heavier loads with minimal movement, and this 60-grade occupies the broad middle ground, absorbing vibration effectively whilst maintaining positional stability for the mounted assembly. Custom variants in oil-resistant and high-temperature rubbers, as well as stainless steel hardware, are available on request. Typical applications for this grade and size include instrument panels, light industrial machinery, small generator sets, automotive components, and air-conditioning units where load demands are moderate and operator comfort or equipment protection from transmitted vibration is a priority. The mount is also suitable for exhaust mountings and general equipment in agriculture, marine, and power-generation environments where a compact footprint is advantageous. This mount is part of a broader male-male bobbin range.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 20mm |
| Thread Size (V) | M8 |
| Bolt Length (L) | 20mm |
| Max Load (Kg) | 38 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3020MM15-60 | 3030MM20-70 | 3040FF08-70 | 4025MM25-45 | 5060FF10-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 20mm | 30mm | 40mm | 25mm | 60mm |
| Size | 30x20mm | 30x30mm | 30x40mm | 40x25mm | 50x60mm |
| Deflection | 1.6 | 2.6 | 3.6 | 2.1 | 5.4 |
| Diameter | 30mm | 30mm | 30mm | 40mm | 50mm |
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Length Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | 51-100mm |
| Shore Hardness | 60 | 70 | 70 | 45 | 45 |
| Thread | M8 | M8 | M8 | M10 | M10 |
| Show More | |||||
A. The mount has an outer diameter of 30 mm and a height of 20 mm, with M8 x 20 mm male threaded studs on both faces. Its maximum load rating is 38.0 kg with a deflection of 1.6 mm.
A. This mount is vulcanised to a 60 Shore A medium rubber. At this grade, the mount balances vibration isolation with positional support — softer grades give greater deflection and better isolation under lower loads, whilst harder grades carry higher loads with less movement. The 60-grade suits the broad middle ground of general-purpose machinery mounting.
A. The 3020MM20-60 may be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation and load-path design.
A. The mount is suitable for air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery. It serves industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes. The same diameter and height are available in a softer 45 Shore A grade (SKU: 3020MM20-45) for greater isolation and lower-load use, and a firmer 70 Shore A grade (SKU: 3020MM20-70) for higher-load or shock-restraint applications.
A. Custom variants in oil-resistant and high-temperature rubbers, as well as stainless steel hardware and additional sizes, are available on request.
