Product Number: 3025MM20-60

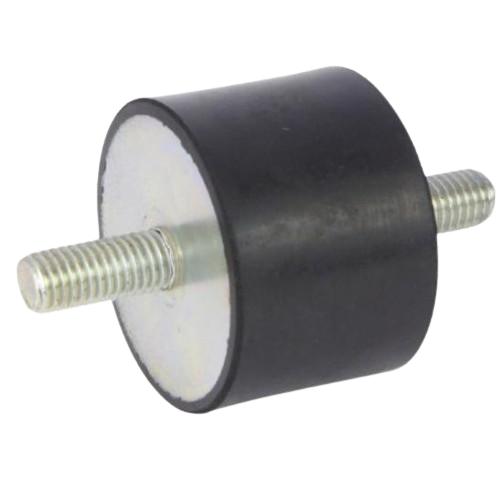

Compact and versatile, the 30x25mm Male-Male Bobbin Mount in 60 Shore A hardness (SKU: 3025MM20-60) is engineered to deliver a balanced combination of vibration isolation and structural support across a broad spectrum of light to medium-duty installations. With a maximum load rating of 29.0 kg and a controlled deflection of 2.1 mm, this mid-hardness grade occupies the practical centre ground of the bobbin mount range, offering enough compliance to absorb vibration effectively while providing the rigidity needed where positional stability matters. Constructed with rubber-to-metal bonded technology, this mount can be loaded in shear, compression, or a combination of both, giving installation engineers genuine flexibility in how it is deployed. The 60 Shore A rubber compound represents the general-purpose grade within the family: softer grades yield greater deflection and better isolation at lower loads, while firmer grades prioritise load-carrying capacity with reduced movement. At this mid-point hardness, the mount suits applications where neither extreme is appropriate, balancing isolation performance with controlled support. Typical applications span many equipment: instrument panels, air-conditioning units, generator sets, industrial machinery, diesel engines, and exhaust mountings across industries including automotive, power generation, agriculture, marine, and construction and off-highway. Thread configuration is M8 x 20 mm (male-male), fitting standard mounting arrangements without adaptation. Where specialist requirements arise, oil-resistant and high-temperature rubber compounds, stainless steel metal parts, and custom sizes are available on request.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 25mm |
| Thread Size (V) | M8 |
| Bolt Length (L) | 20mm |
| Max Load (Kg) | 29 |
| Deflection (mm) | 2.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M8, Max Load 29Kg - 3030MF20-60
£11.18
£10.96
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2520MM18-60 | 2530MM18-70 | 2530MM20-70 | 3030MF20-60 | 3035FF08-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 30mm | 30mm | 35mm | ||
| Height | 20mm | 30mm | |||
| Size | 25x20mm | 25x30mm | 25x30mm | 30x30mm | 30x35mm |
| Deflection | 1.6 | 2.7 | 2.7 | 2.6 | 3.1 |
| Diameter | 25mm | 25mm | 30mm | ||
| Diameter Range | 11-25mm | 11-25mm | 26-50mm | ||
| Length Range | 26-50mm | 26-50mm | 26-50mm | ||
| Mount Dimension | 25mm | 30mm | |||
| Shore Hardness | 70 | 70 | 60 | ||
| Thread | M6 | M6 | M8 | M8 | M8 |
| Show More | |||||
A. This mount has a maximum load rating of 29.0 kg and a deflection of 2.1 mm. These figures apply at the 60 Shore A mid-hardness grade for the 30x25mm M8 geometry.
A. The 60 Shore A grade represents the mid-point of the available hardness range for this geometry. It provides a balance of vibration isolation and load-bearing support — softer grades offer greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A grade suits general-purpose mounting where neither extreme is required.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility to suit a variety of installation configurations.
A. Typical applications include air-conditioning units, exhaust mountings, diesel engines, generator sets, instrument panels, and industrial machinery and equipment. Industries served include automotive, power generation, agriculture, marine, construction and off-highway, railway and mass transit, and military and defence.
A. Yes. The same 30x25mm M8 geometry is available in 45 Shore A (SKU: 3025MM20-45) for softer, higher-deflection isolation, and 70 Shore A (SKU: 3025MM20-70) for firmer, higher-load duty. The broader range extends to larger and smaller sizes including SKUs 0808MM06, 100100MM44, 10030MM44, 10040MM44, 10050MM44, and 10055MM44, covering loads from approximately 1 kg to 2000 kg per mounting.
A. Yes. Oil-resistant and high-temperature rubber compounds, stainless steel metal parts, and custom sizes are available on request for applications with specific environmental or load requirements.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
