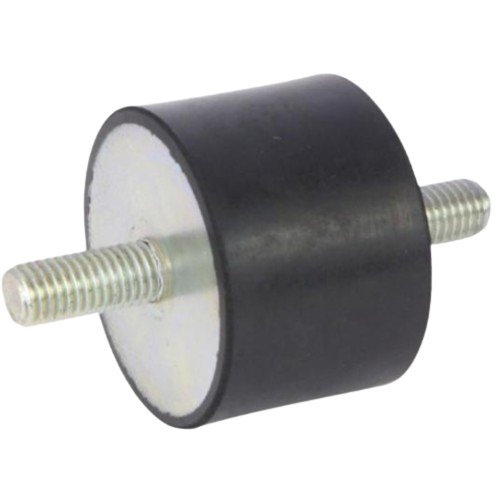

Product Number: 5025MM25-60
Balancing vibration isolation with load-bearing support, the 5025MM25-60 is a rubber-to-metal bonded male-male bobbin mount sized at 50 mm diameter by 25 mm height with M10 x 25 mm threaded studs and a 60 Shore A medium hardness rubber element. Rated to a maximum load of 147.0 kg with a deflection of 2.0 mm, this mount occupies the broad middle ground of general machinery mounting, delivering controlled movement under moderate operational loads without sacrificing the isolation performance that sensitive equipment or surrounding structures demand. The rubber-to-metal bonded construction is suitable for loading in shear, compression or a combination of both, giving installation engineers flexibility in how the mount is oriented within a machine or frame. The 60 Shore A grade is well placed for mainstream industrial applications where neither maximum compliance nor maximum rigidity is required; it supports machinery that generates moderate vibration at steady operational cycles, protecting both the equipment itself and adjacent structures from transmitted shock and sustained oscillation. This mount is suited to a broad range of industries and equipment types, including industrial machinery and equipment, generator sets, diesel engines and air-conditioning units. It contributes to improved machinery lifespan, reduced structural transmission of vibration, and improved operator comfort in installations where the mounting point must carry a consistent load reliably over time. Stainless steel metal components and oil-resistant or high-temperature rubber grades are available on request for specialised environments. This mount is part of a wider bobbin range.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 50mm |
|---|---|
| Height (H) | 25mm |
| Thread Size (V) | M10 |
| Bolt Length (L) | 25mm |
| Max Load (Kg) | 147 |
| Deflection (mm) | 2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 6050MM37-60 | 7040FF10-45 | 7035MM25-45 | 7540MM37-45 | 7550FF12-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 50mm | 40mm | 35mm | 40mm | 50mm |
| Size | 60x50mm | 70x40mm | 70x35mm | 75x40mm | 75x50mm |
| Deflection | 4.5 | 3.4 | 2.9 | 3.4 | 4.4 |
| Diameter | 60mm | 70mm | 70mm | 75mm | 75mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 60 | 45 | 45 | 45 | 45 |
| Thread | M12 | M10 | M10 | M12 | M12 |
| Show More | |||||
A. The 5025MM25-60 is rated to a maximum load of 147.0 kg with a deflection of 2.0 mm.
A. The mount measures 50 mm diameter by 25 mm height (D x H: 50 x 25) with M10 x 25 mm male threaded studs (d x L: M10 x 25).
A. A 60 Shore A rubber element is a medium hardness grade that balances vibration isolation with load-bearing support. It is well suited to mainstream general machinery mounting at moderate loads, where neither maximum compliance nor maximum rigidity is required.
A. This mount may be loaded in shear, compression or a combination of both, providing flexibility in installation orientation.
A. Confirmed applications include industrial machinery and equipment, generator sets, diesel engines and air-conditioning units. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. A softer 45 Shore A grade (SKU: 5025MM25-45) is available for greater deflection and improved isolation at lighter loads, and a firmer 70 Shore A grade (SKU: 5025MM25-70) is available for higher-load applications with less movement.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubber grades are available on request, as are additional and custom sizes.
