Product Number: 6050MM37-60
Variations

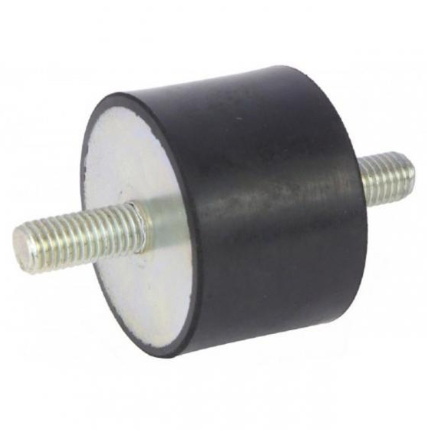

Balancing vibration isolation with structural support, the 6050MM37-60 is a male-male bobbin mount measuring 60 mm diameter by 50 mm height, with an M12 x 37 mm threaded stud configuration and a 60 Shore A rubber hardness rating, placing it squarely in the general-purpose band for mainstream machinery mounting. At this mid-range hardness, the mount accepts a maximum load of 149.0 kg with a controlled deflection of 4.5 mm, delivering a reliable equilibrium between movement compliance and load-bearing capacity across a wide variety of industrial applications. Constructed with rubber-to-metal bonded technology, the mount is capable of operating under shear, compression, or combined loading conditions. The 60 Shore A compound sits at the crossover between the greater compliance of softer grades and the stiffness of harder alternatives, making it well suited to machinery where neither excessive movement nor excessive rigidity is desirable. The rubber-to-metal bond ensures consistent performance and long service intervals, improving machinery lifespan and protecting surrounding structures from transmitted vibration and shock. This mount is appropriate for a broad cross-section of industrial and commercial equipment including generator sets, industrial machinery, diesel engines, and air-conditioning units. It is equally at home in power generation facilities, agricultural installations, and marine environments, providing operator comfort improvements alongside structural protection in each context. The geometry handles moderate loading across this mid-range position in the bobbin family without the compromises of either extreme of the Shore hardness scale.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Body diameter D (mm) | 60 |
| Overall height H (mm) | 50 |
| Stud thread d | M12 |
| Stud length L (mm) | 37 |
| Max load (kg) | 149 |
| Deflection (mm) | 4.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M10, Max Load 151Kg - 5025MF20-60
£13.59
£13.32
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 7035MM25-45 | 7540MM37-45 | 7550FF12-45 | 5025MF20-60 | 5025MF25-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 35mm | 40mm | 50mm | 25mm | |
| Height | 25mm | ||||
| Size | 70x35mm | 75x40mm | 75x50mm | 50x25mm | |
| Deflection | 2.9 | 3.4 | 4.4 | 2 | 2 |
| Diameter | 70mm | 75mm | 75mm | 50mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 26-50mm | |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 11-25mm | |
| Mount Dimension | 50mm | ||||
| Shore Hardness | 45 | 45 | 45 | 60 | |
| Thread | M10 | M12 | M12 | M10 | M10 |
| Show More | |||||
A. This mount carries a maximum load of 149.0 kg with a deflection of 4.5 mm.
A. The 60 mm figure is the rubber element diameter and 50 mm is the overall height of the mount body. M12 x 37 refers to the metric thread diameter of 12 mm and the stud length of 37 mm on each threaded end.
A. The 60 Shore A mid-range grade balances vibration isolation and load support, making it appropriate for mainstream general-machinery applications at moderate loads. Softer grades (such as the 45 Shore A variant) offer greater deflection for lighter, more vibration-sensitive equipment; harder grades (such as the 70 Shore A variant) carry higher loads with less movement. Where neither extreme is required, the 60 Shore A grade is the natural choice.
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility in installation orientation.
A. Source-confirmed applications include generator sets, industrial machinery, diesel engines, and air-conditioning units. The mount is used across industries including power generation, agriculture, marine, construction and off-highway, automotive, and railway and mass transit.
A. Yes. The same 60 x 50 mm body is available in 45 Shore A (6050MM37-45) and 70 Shore A (6050MM37-70). Other dimensional variants in the wider range include the 0808MM06, 100100MM44, 10030MM44, 10040MM44, 10050MM44, and 10055MM44.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
